| Tên thương hiệu: | Casun |
| Số mô hình: | 86HSE4N+HBS860H |
| MOQ: | 1 cái |
| Giá: | $100-$140 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

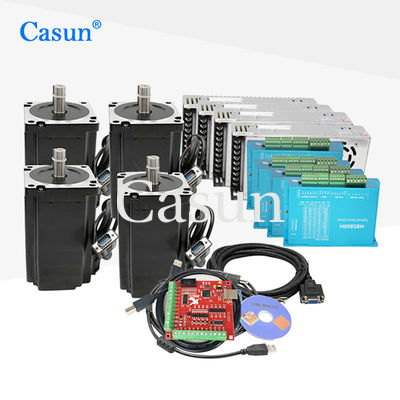

NEMA 34 4.5N.m Closed Loop Stepper Motor Kit stepper motor +driver+PSU+mach3 cnc kit
NEMA 34 Steppper Motor with Magnetic Encoder 86*86*107mm 4.2A
The 86mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.
Use with a microstepping driver to reduce vibration and achieve higher step resolution.
Choose a baseline version or request your own customized configuration.
Features:
Step Angel |
1.8 ° |
Fram Size |
86mm |
Number of Phase |
2 Phase |
Rated Current |
4.2 A |
Holding Torque |
4.5N.m |
Resistance |
-ohm |
Inductance |
-mH |
Rotor Inertia |
-g-cm² |
Motor weight |
2.5 kg |
Number of leads |
4 |
Connection |
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque |
Rated Current |
Resistance per phase |
Inductance per phase |
Detent torque |
Rotor inertia |
Lead wire |
Motor length |
| mN.m | A | Ω | mH | mN.m | g.cm² | No. | mm | |
| 60SHD4201 | 650 | 0.6 | 15 | 20 | 50 | 280 | 4 | 45 |
| 60SHD4401 | 1500 | 2.8 | 1 | 3.3 | 70 | 450 | 4 | 56 |
| 60SHD4601 | 3200 | 4.2 | 0.75 | 3.7 | 120 | 580 | 4 | 86 |
| 60SHD6602 | 2500 | 3 | 1.55 | 3.7 | 120 | 580 | 4 |
Download
Encoder |
Brake |
Gearbox |
Shaft |
|
|
|
|
