| Tên thương hiệu: | Casun |
| Số mô hình: | 42SHD4034-24BH-HP42 |
| MOQ: | 5 cái |
| Giá: | $22-$19 |
| Điều khoản thanh toán: | L/C, D/A, D/P, T/T |
| Khả năng cung cấp: | 100000/CHIẾC mỗi tháng |

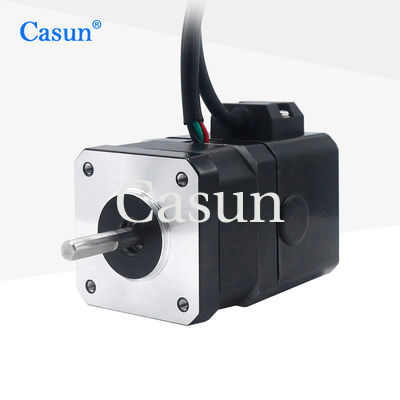

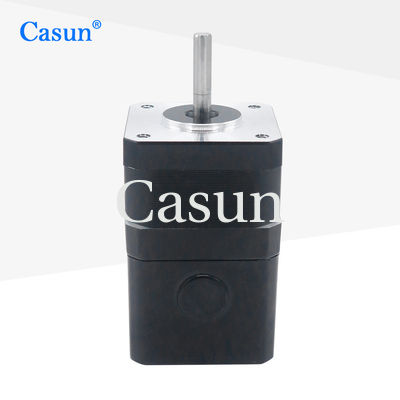

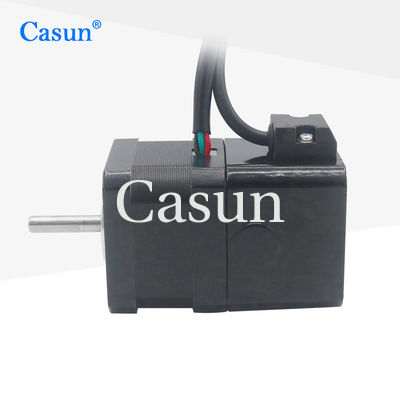

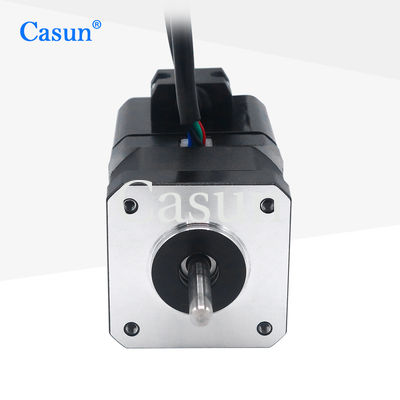

Nema 17 Colsed-loop Stepper Motor, 42*42*34mm.1.8 Degree 2 Phase, 300mN.m Holding Torque.
Top Manufacturer Supplier 42*33mm 1.8 Degree Closed-Loop Nema 17 Stepper Motors 300mN.M For Cnc Kit Electric Motor
The 42mm deceleration Colsed-loop stepper motor combines the characteristics of stepper motors, enabling precise positioning control and being suitable for applications that require high-precision positioning.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
42 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
1.2 A |
|
Holding Torque
|
300 N.m |
|
Resistance
|
5.0 ohm |
|
Inductance
|
6.2 mH |
|
Rotor Inertia
|
38 g-cm² |
|
Motor weight
|
0.8 kg |
|
Shatf
|
24 mm |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Gear Box
Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°
