| Tên thương hiệu: | Casun |
| Số mô hình: | 42SHF3202-22L1 |
| MOQ: | 5 cái |
| Giá: | $5.29~$6.86 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 10000+chiếc+tháng |

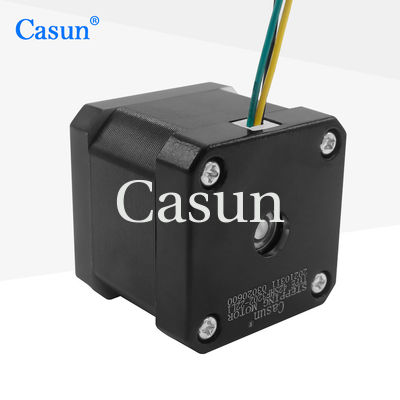

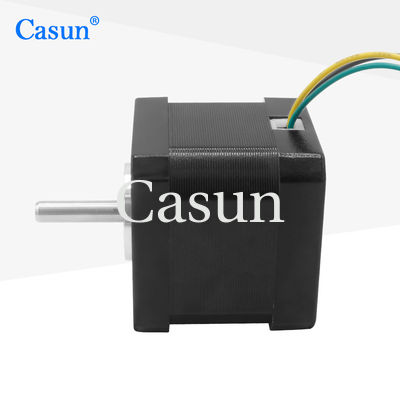

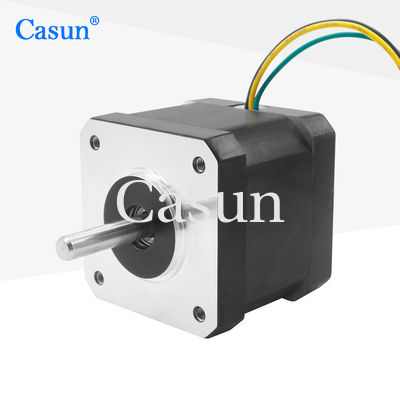

Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V High Quality Stepper Motor with CE RoHS Certification
The Casun Nema17 Stepper Motor delivers exceptional positioning accuracy with its 1.2° step angle, providing 30% finer resolution than standard 1.8° motors. Engineered for high-performance automation, this motor combines 360mN.m torque with 10.8V optimized operation, making it ideal for CNC machines, 3D printers, and precision instrumentation.
Features:
|
Step Angel
|
1.8° |
|
Frame Size
|
40 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
1.2 Amp |
|
Holding Torque
|
360 mN.m |
|
Resistance
|
9 ohm |
|
Inductance
|
10.3 mH |
|
Rotor Inertia
|
57 g.cm² |
|
Motor weight
|
0.24 kg |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130 deg C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Encoder
Voltage: 5 v
Output: A + A - B + B - Z + Z -
