| Tên thương hiệu: | Casun |
| Số mô hình: | 36SHD4401-6K |
| MOQ: | 5 cái |
| Giá: | $3.91~$4.87 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 10000+chiếc+tháng |

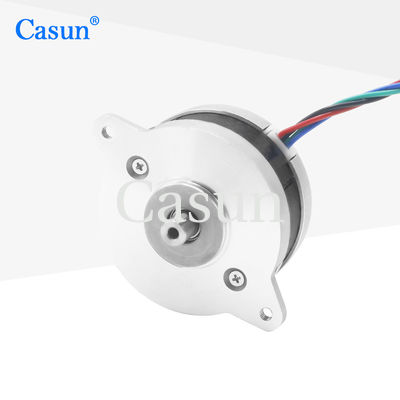

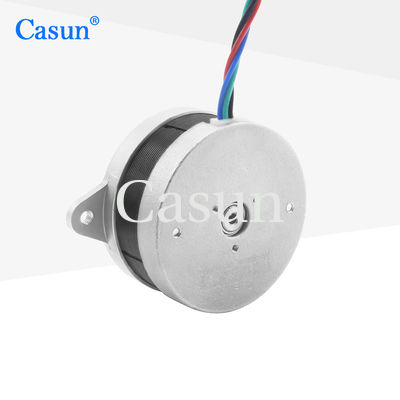

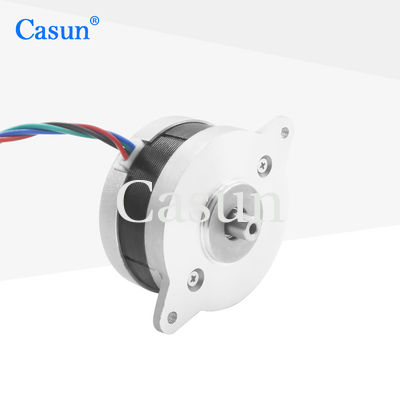

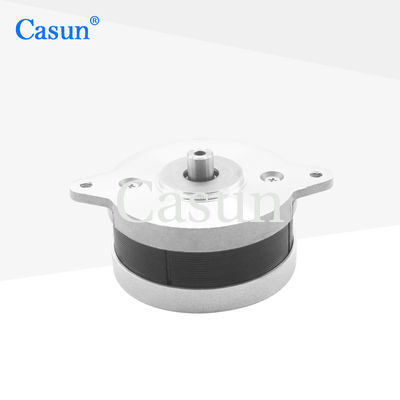

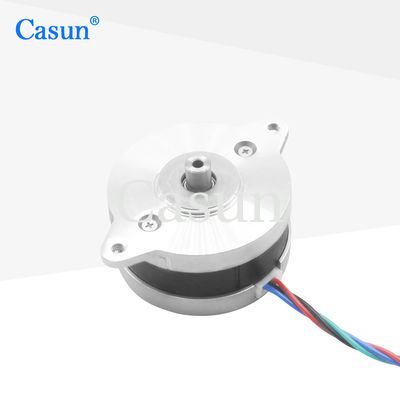

Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics
The Casun Flat Stepper Motor redefines compact motion control with an ultra-thin 18.6 mm body and lightweight 0.07 kg design, making it perfect for robotics, drones, and portable devices where space and weight are critical. Despite its slim form, it delivers a robust 100 mN.m
holding torque for precise and reliable operation.
Features:
|
Step Angel
|
1.8° |
|
Frame Size
|
18.6 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
1 Amp |
|
Holding Torque
|
100 mN.m |
|
Resistance
|
2.15 ohm |
|
Inductance
|
1.41 mH |
|
Rotor Inertia
|
13.7 g.cm² |
|
Motor weight
|
0.07 kg |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130 deg C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Encoder
Voltage: 5 v
Output: A + A - B + B - Z + Z -
