| Tên thương hiệu: | Casun |
| Số mô hình: | 42SHD8909-24 |
| MOQ: | 5 cái |
| Giá: | $5~$7 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 10000+chiếc+tháng |

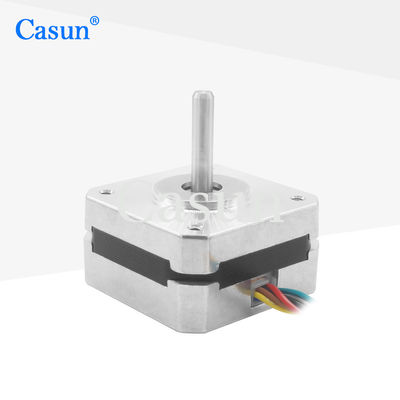

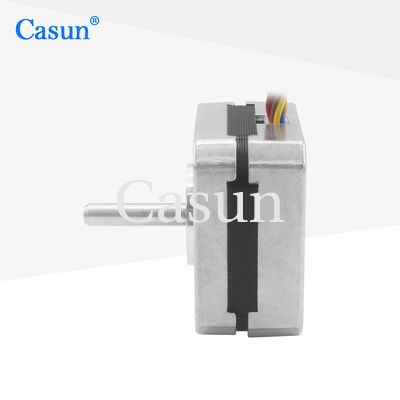

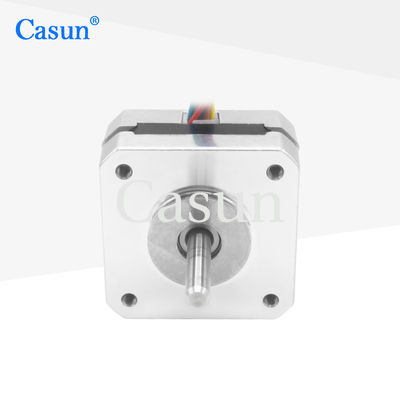

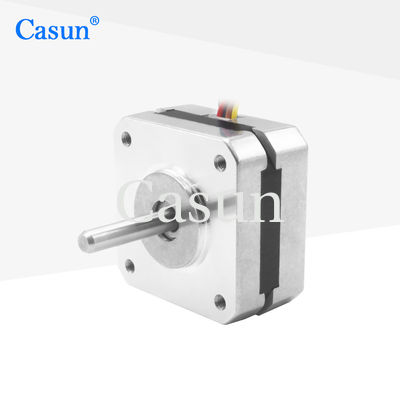

Casun Nema 17 1.8° Degree 125mN.m 23mm Body with CE RoHS Certification Stepper Motor for Beauty Equipment
The Casun Nema17 Hybrid Stepper Motor delivers industrial-grade precision and high-torque performance (500mN.m) for demanding CNC and automation applications. Featuring a compact 42×48mm frame, this motor integrates advanced hybrid technology for smooth, reliable motion control while maintaining exceptional energy efficiency.
Features:
|
Step Angel
|
1.8° |
|
Frame Size
|
23 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
1.2 Amp |
|
Holding Torque
|
125 mN.m |
|
Resistance
|
1.88 ohm |
|
Inductance
|
1.9 mH |
|
Rotor Inertia
|
15 g.cm² |
|
Motor weight
|
0.2 kg |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130 deg C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Encoder
Voltage: 5 v
Output: A + A - B + B - Z + Z -
