| Tên thương hiệu: | Casun |
| Số mô hình: | 20SHD4255-36SKQ |
| MOQ: | 5 cái |
| Giá: | $26~$28.15 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 10000+chiếc+tháng |

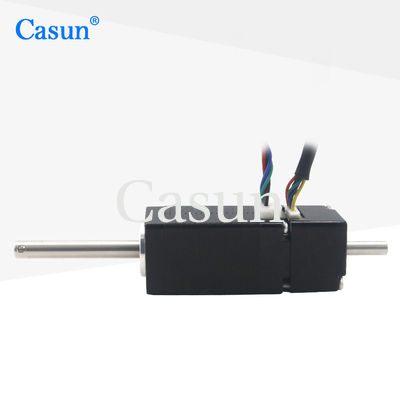

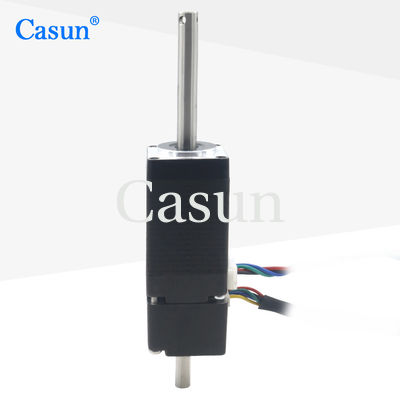

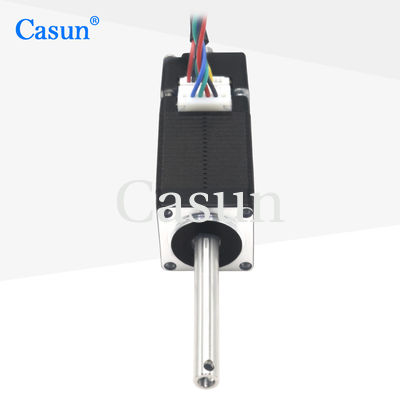

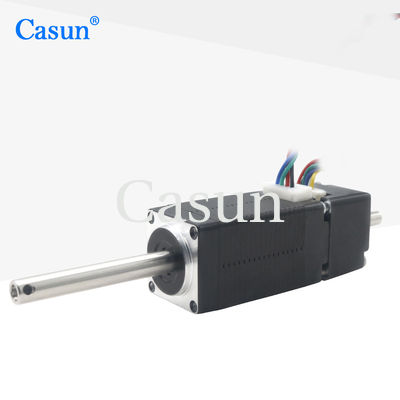

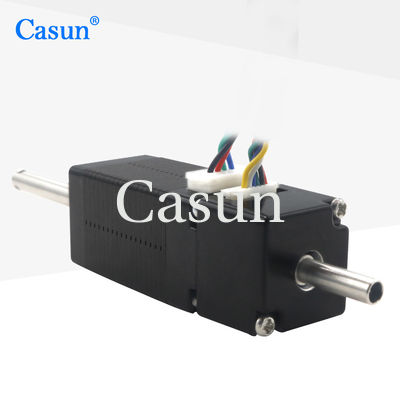

Casun Nema 8 7.5V 40 mN.m 0.6Amp Stepper Motor with Encoder Stepping Motor for Medical Equipment
The Casun Nema 8 Stepper Motor is a compact, high-precision motor designed for medical equipment and sensitive automation applications. With a 40 mN.m holding torque and 7.5V operating voltage, it delivers reliable performance while consuming just 0.6A per phase. The integrated encoder ensures accurate positioning and feedback, making it ideal for surgical devices, lab automation, and small-scale robotics.
Features:
|
Step Angel
|
1.8° |
|
Frame Size
|
38 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
0.6 Amp |
|
Holding Torque
|
40 mN.m |
|
Resistance
|
12.5 ohm |
|
Inductance
|
5.5 mH |
|
Rotor Inertia
|
3.8 g.cm² |
|
Motor weight
|
0.08 kg |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130 deg C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Encoder
Voltage: 5 v
Output: A + A - B + B - Z + Z -
