| Tên thương hiệu: | Casun |
| Số mô hình: | 35SHD0003-23H |
| MOQ: | 1 cái |
| Giá: | $3.3~$3.8 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

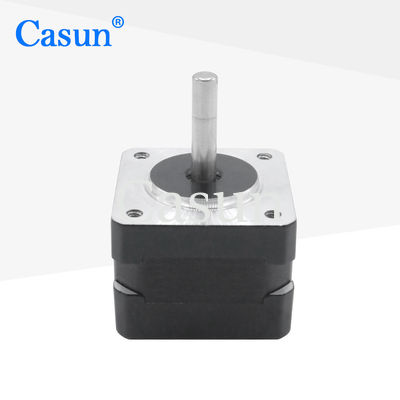

Casun Nema 14 Stepper Motor Hybrid Technology High Precision 110 mN.m Torque for Medical Applications
The Casun Nema 14 Stepper Motor combines hybrid technology and high precision, delivering 110 mN.m torque for medical applications. Designed for reliability and accuracy, it ensures smooth, consistent performance in critical medical equipment. Compact, efficient, and built for demanding environments.
Features:
|
Step Angel
|
1.8° |
|
Frame Size
|
26 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
0.4 Amp |
|
Holding Torque
|
110 mN.m |
|
Resistance
|
30 ohm |
|
Inductance
|
24 mH |
|
Rotor Inertia
|
12 g.cm² |
|
Motor weight
|
0.15 kg |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130 deg C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Encoder
Voltage: 5 v
Output: A + A - B + B - Z + Z -
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 35SHD0307 | 80 mN.m | 1.8° | 20 mm | D Shaft-20mm | 0.4 A |
| 35SHD0001 | 100 mN.m | 1.8° | 26 mm | D Shaft-20mm | 0.4 A |
| 35SHD0102 |
150 mN.m |
1.8° | 34 mm | D Shaft-20mm | 0.75 A |
| 35SHD0801 | 230 mN.m | 1.8° | 40 mm | D Shaft-24mm | 0.5 A |
