| Tên thương hiệu: | Casun |
| Số mô hình: | 28SHD4207-20 |
| MOQ: | 1 cái |
| Giá: | $8.88-$9.53 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

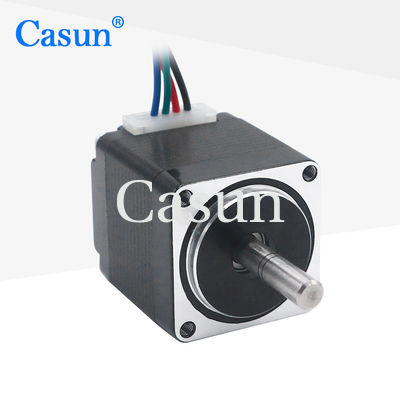

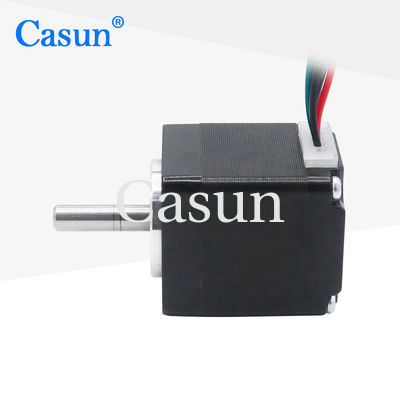

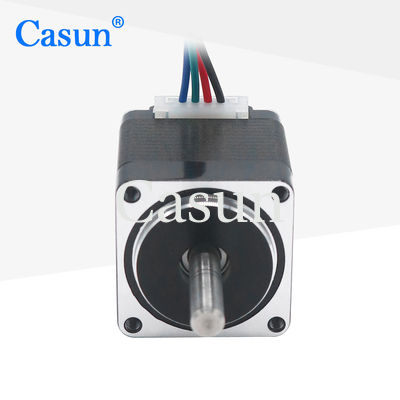

Casun Nema 11 Mini Stepper Motor 80 mN.m 0.67 A High Precision for Medical Equipment.
The Casun Nema 11 Mini Stepper Motor delivers high precision in a compact package, offering 80 mN.m holding torque with a rated current of 0.67 A. This energy-efficient yet powerful micro stepper is ideal for medical equipment, laboratory instruments, and other space-constrained applications requiring exceptional motion control accuracy and reliability.
Features:
|
Step Angel
|
1.8 ° |
|
Frame Size
|
28 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
0.67 Amp |
|
Holding Torque
|
80 mN.m |
|
Resistance
|
5.8 ohm |
|
Inductance
|
4.1 mH |
|
Rotor Inertia
|
9 g.cm² |
|
Motor weight
|
0.12 kg |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130 deg C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Encoder
Voltage: 5 v
Output: A + A - B + B - Z + Z -
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 28SHD4001 |
30 mN.m |
1.8° | 25 mm | ROUND Shaft-15mm | 0.4A |
| 28SHD4202 | 60 mN.m | 1.8° | 32 mm | ROUND Shaft-20mm | 0.67A |
| 28SHD4303 | 80 mN.m | 1.8° | 40.5 mm | ROUND Shaft-20mm | 0.67A |
| 28SHD4401 | 95 mN.m | 1.8° | 44.5 mm | ROUND Shaft-20mm | 0.67A |
| 28SHD4501 | 120 mN.m | 1.8° | 51.5 mm | ROUND Shaft-20mm | 0.67A |
