| Tên thương hiệu: | Casun |
| Số mô hình: | 60SHD4703-21B |
| MOQ: | 1 cái |
| Giá: | $12.00-$16 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

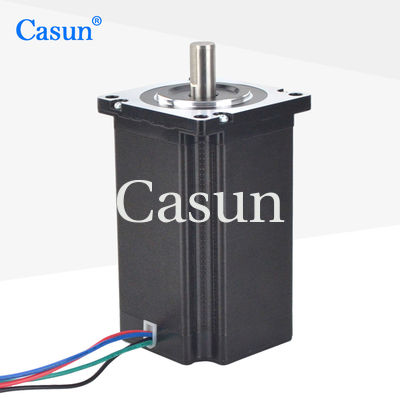

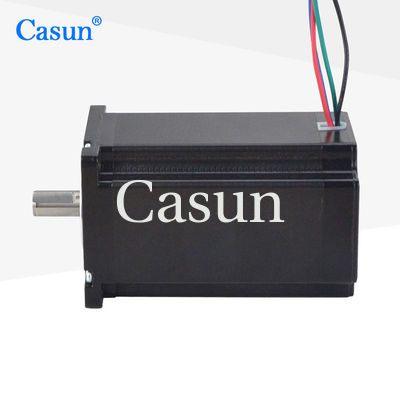

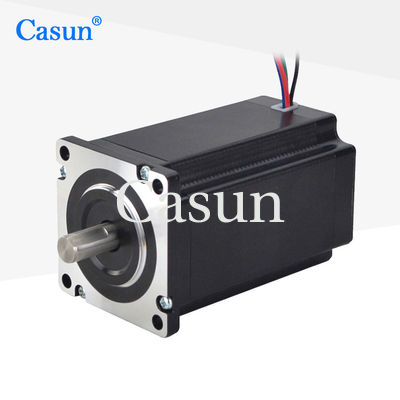

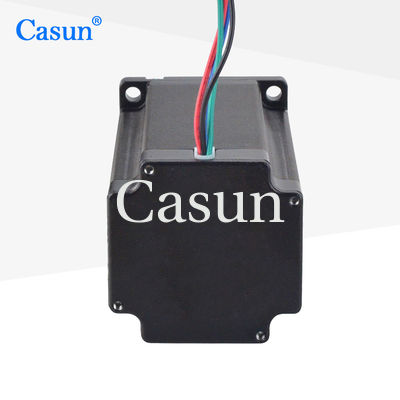

NEMA 23 stepper motors have high reliability and lifespan due to their simple structure, no brushes, and no wear and tear.
Being able to provide high twisting torque at low speeds is crucial for applications that require precise control and stable luck.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
60 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
4.0 Amp |
|
Holding Torque
|
3.5N.m |
|
Resistance
|
0.73ohm |
|
Inductance
|
2.8mH |
|
Rotor Inertia
|
1000g-cm² |
|
Motor weight
|
1.5kg |
|
|
|
|
|
|
Motor
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
| 42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
| 42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
| 42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
| 42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
Download
We have the ability to customize motor features such as shafts, winding parameters, installation dimensions, lead wires, and connectors can help to ensure that the motor is a perfect fit for the customer's application. This can lead to improved efficiency, increased reliability, and reduced downtime.
