| Tên thương hiệu: | Casun |
| Số mô hình: | B20SHD4381-C25L |
| MOQ: | 1 cái |
| Giá: | $22.94 - 32.94 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

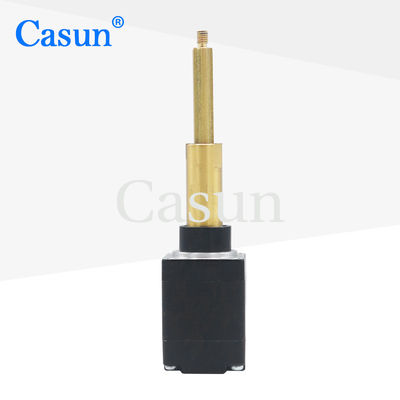

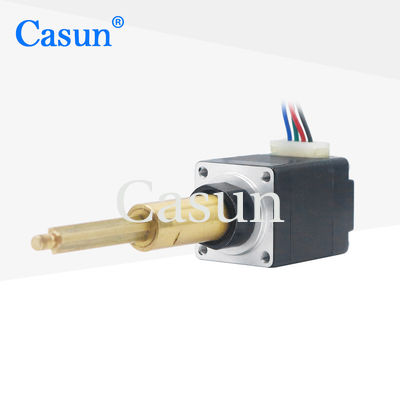

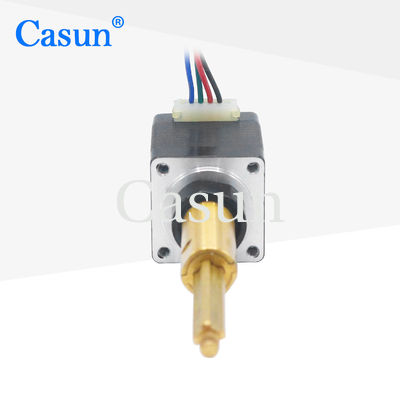

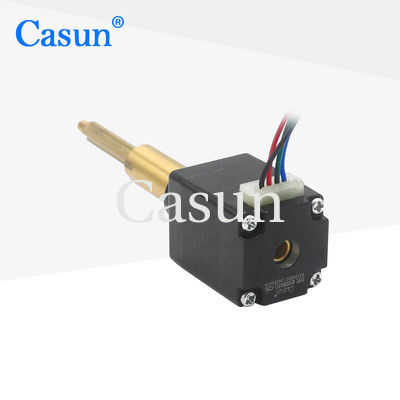

The linear push rod stepper motor directly converts rotational motion into linear motion, improving mechanical efficiency.
Widely used in various fields such as automated production lines, precision machine tools, medical equipment, scientific research instruments, etc.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
20mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
0.6Amp |
|
Holding Torque
|
0.5kg at 600pps |
|
Resistance
|
11.5ohm |
|
Inductance
|
3.50mH |
|
Rotor Inertia
|
6g-cm² |
|
Motor weight
|
0.2kg |
|
Lead
|
25.4mm |
|
Connection
|
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Shaft Radial Play:0.02Max. (450g-load)
Shaft Axial Play:0.08Max. (450g-load)
Max. radial force:28N (20mm from the flange)
Max. axial force):10N
| Model | Holding Torque | Step Angle | Motor Length | Type of Shaft | Rated Current |
| 42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
| 42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
| 42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
| 42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
| 42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
| Body Length | Diameter of Screw | Pitch | Length of Screw | ||
| 20 mm 34 mm 40 mm 48 mm 60 mm |
5 | 2 | 20-1000 mm | ||
| 8 | |||||
| 6.35 | 1.27 | ||||
| 3.175 | |||||
| 6.35 | |||||
| 6.5 | 3 | ||||
| 6.35 | |||||
| 8 | 1 | ||||
| 2 | |||||
| 4 | |||||
| 8 | |||||
| 12 | |||||
