2 Phase 0.27A Micro Stepper Motor SM1063 For Automotive Instrumentation Casun Motors

2 Phase 0.27A Micro Stepper Motor SM1063 For Automotive Instrumentation Casun Motors

Tên thương hiệu:	Casun
Số mô hình:	SM1063
MOQ:	1 cái
Giá:	$2.6-$8
Điều khoản thanh toán:	D/A, T/T, L/C, D/P
Khả năng cung cấp:	40000+Chiếc+Tháng

Thông tin chi tiết

Mô tả sản phẩm

Thông tin chi tiết

Nguồn gốc:

Trung Quốc

Chứng nhận:

CE,ROSH,ISO

bước thiên thần:

Giai đoạn:

Rút ra:

1250pps

Điện áp:

5V DC

Chiều dài đột quỵ:

56,5mm

Sân bóng đá:

1.25mm

tùy chỉnh:

Động cơ có thể được thiết kế và sản xuất theo yêu cầu tùy chỉnh.

chi tiết đóng gói:

Thùng: 36x29x14cm

Làm nổi bật:

Casun micro stepper motor

2 Phase micro stepper motor

0.27A micro stepper motor

Mô tả sản phẩm

SM1063 Series Linear Stepper Motors

Main applications: scanners, printing, medical equipment, automotive instrumentation, flash lights, security systems,

Ambient temperature: -10°- 55°
Insulation Resistance: 500VDC 100MΩMIN
Insulation Class: CLASS E
Maximum Continuous Response Frequency: 1500pps
Maximum Self-start Frequency: 1000PPS

Features:

Bipolar models available
Suitable for high-tech industrial and automated electronics
Customisable service available
Our engineers will contact you within 48 hours to provide the best solution.
Professional research and development manufacturing

Motor Specifications

Step angel	18°
Phase	2
Voltage	5VDC
Current	0.27A
Resistance	18Ω
Pull-out	500pps
Model	SM1063

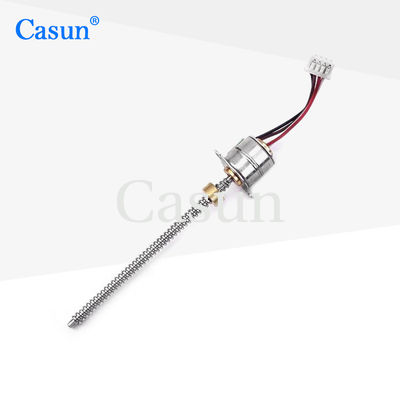

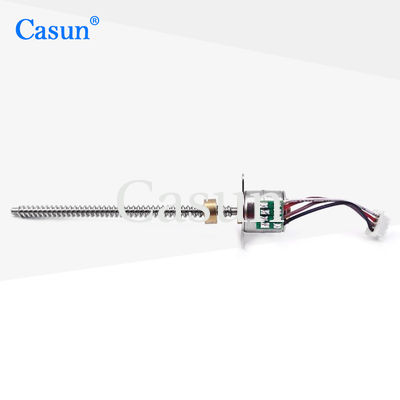

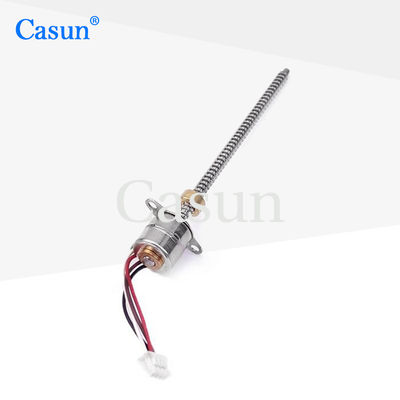

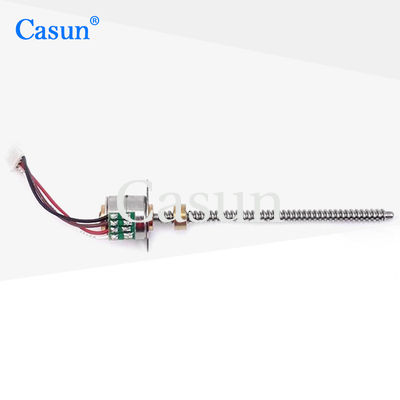

Appearance

2 Phase 0.27A Micro Stepper Motor SM1063 For Automotive Instrumentation Casun Motors 0

Dimensions

2 Phase 0.27A Micro Stepper Motor SM1063 For Automotive Instrumentation Casun Motors 1

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
