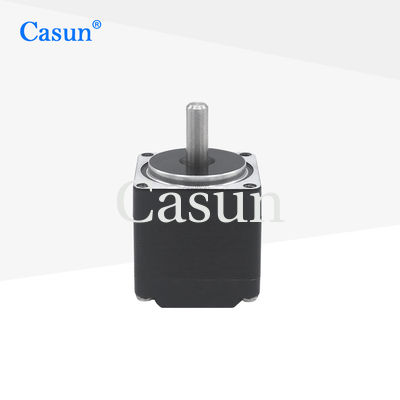

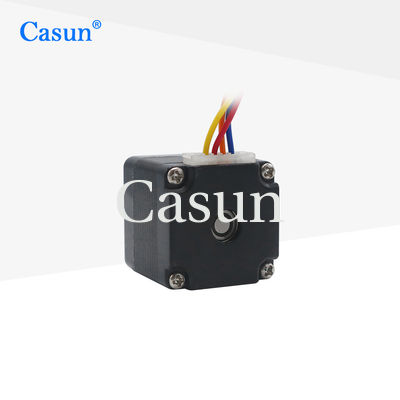

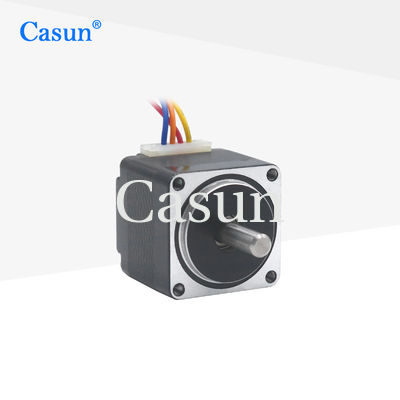

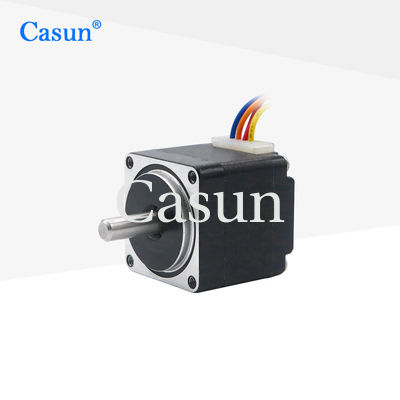

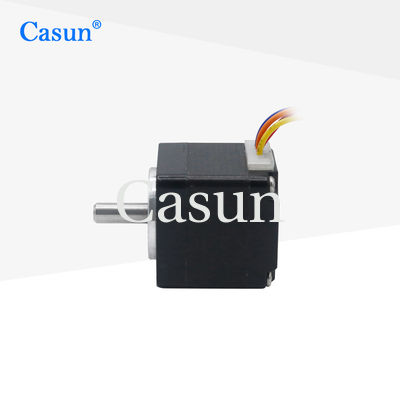

NEMA 11 Mini Stepper Motor 0.67A 95mN.m 44.5mm Body For Medical Equipment

NEMA 11 Mini Stepper Motor 0.67A 95mN.m 44.5mm Body For Medical Equipment

Tên thương hiệu:	Casun
Số mô hình:	28SHD4401-20B1
MOQ:	1 cái
Giá:	$5.94-$8.6
Điều khoản thanh toán:	D/A, T/T, L/C, D/P
Khả năng cung cấp:	40000+Chiếc+Tháng

Thông tin chi tiết

Mô tả sản phẩm

Thông tin chi tiết

Nguồn gốc:

Trung Quốc

Chứng nhận:

CE,ROSH,ISO

bước thiên thần:

1,8°

Giữ mô-men xoắn:

95mN.m

Hiện hành:

0,67A

chiều dài động cơ:

44mm

Chứng chỉ:

Tiêu chuẩn ISO RoHS

tùy chỉnh:

Động cơ có thể được thiết kế và sản xuất theo yêu cầu tùy chỉnh.

chi tiết đóng gói:

Thùng: 36x29x14cm

Làm nổi bật:

44.5mm NEMA 11 Mini Stepper Motor

95mN.m NEMA 11 Mini Stepper Motor

0.67A NEMA 11 Mini Stepper Motor

Mô tả sản phẩm

NEMA 11 stepper motors provide relatively high torque while maintaining a small volume

Suitable for various industries and applications, including medical equipment, laboratory instruments, small robots, precision positioning systems, etc.

Features:

Each model of stepper motor can be suitable for different scenarios
Needed dealers! !
Available in single or double shaft versions
Specialized in R&D and manufacturing
Our engineering team will reach out within 48 hours to deliver the optimal solution

Motor Specifications

Step Angel	1.8 °
Fram Size	28 mm
Number of Phase	2 Phase
Rated Current	0.67 A
Holding Torque	95 mN.m
Resistance	6.8 ohm
Inductance	5 mH
Rotor Inertia	9 g-cm²
Motor weight	0.12 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
