| Tên thương hiệu: | Casun |
| Số mô hình: | F86SHD4117-176TOH |
| MOQ: | 1 cái |
| Giá: | $3.14-$5 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

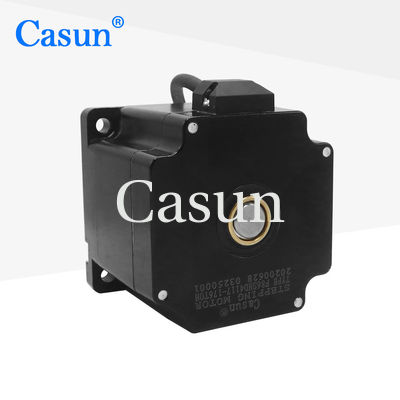

The 86mm Stepper motors can respond very quickly to commands, providing fast acceleration and deceleration, which is very useful for applications that require quick adjustment.
It has been widely used in industrial applications that require precision, stability, and fast motion.
Features:
Step Angel |
1.8 ° |
Fram Size |
86 mm |
Number of Phase |
2 Phase |
Rated Current |
1.3 A |
Holding Torque |
3.8 N.m |
Resistance |
9.2 ohm |
Inductance |
71 mH |
Rotor Inertia |
1760 g-cm² |
Motor weight |
2.5 kg |
Number of leads |
4 |
Connection |
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
