| Tên thương hiệu: | Casun |
| Số mô hình: | 39SHY4001-30 |
| MOQ: | 1 cái |
| Giá: | $4.14-$6.98 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |
39mm Cycle 120mN.M Four Wire Stepper Motor 2 Phase NEMA 16 CE RoHS DC Motors
The 39mm stepper motor is a smaller type of stepper motor that has some unique advantages compared to other larger stepper motors
Working in a low-power manner, it is more energy-efficient and energy-efficient.
Features:
Step Angel |
1.8 ° |
Fram Size |
39 mm |
Number of Phase |
2 Phase |
Rated Current |
0.4 A |
Holding Torque |
120 mN.m |
Resistance |
23.3 ohm |
Inductance |
19.8 mH |
Rotor Inertia |
20 g-cm² |
Motor weight |
0.17 kg |
Number of leads |
4 |
Connection |
Bipolar |

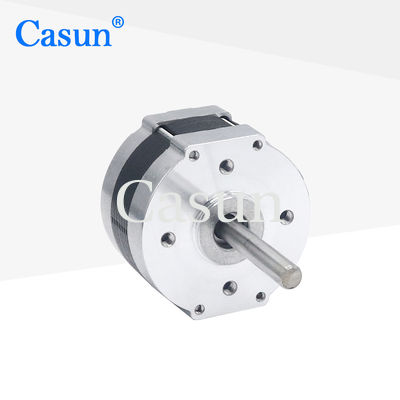

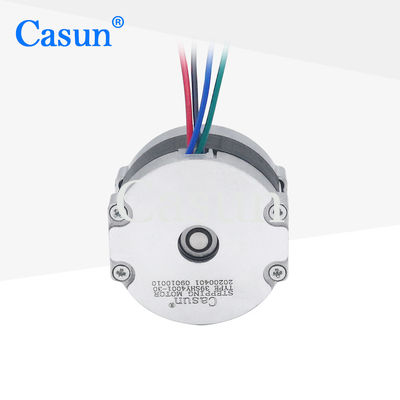

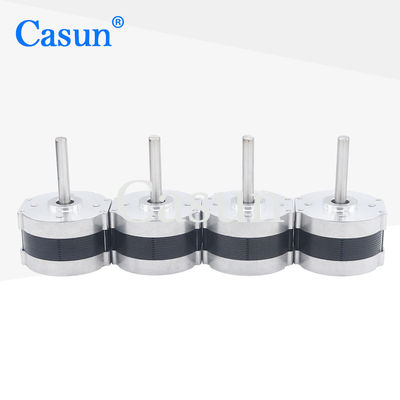

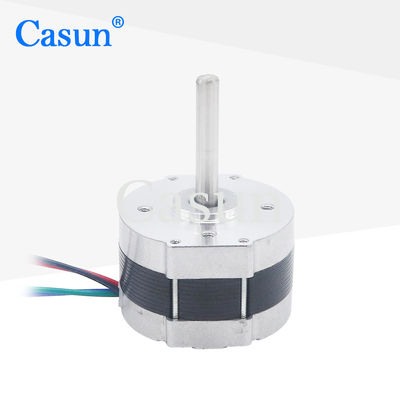

Appearance
Operating Specifications
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Motor Length | Type of Shaft | Rated Current |
| 39SHD0001-20 | 100mN.m | 1.8° | 20mm | Round Shaft 20mm |
0.48A |
| 39SHD0504-20 | 100mN.m | 1.8° | 22mm | Round Shaft 20mm |
0.4A |
| 39SHD0611-20 | 200mN.m | 1.8° | 25mm | Round Shaft 20mm |
0.4A |
| 39SHD0302-20 | 220mN.m | 1.8° | 34mm | Round Shaft 20mm |
0.4A |
| 39SHD0401-24 | 220mN.m | 1.8° | 38mm | Round Shaft 24mm |
0.4A |
| 39SHD0801-24B | 220mN.m | 1.8° | 48mm | D Shaft 24mm |
0.4A |
