| Tên thương hiệu: | Casun |
| Số mô hình: | 57SHD4408-21B |
| MOQ: | 1 cái |
| Giá: | $3.14-$5 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

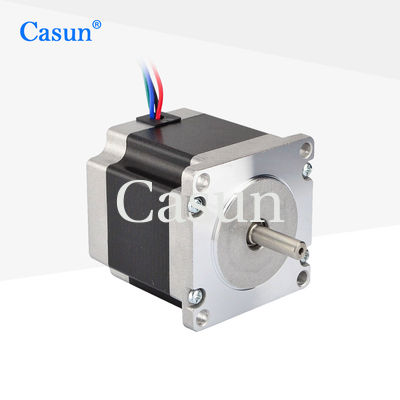

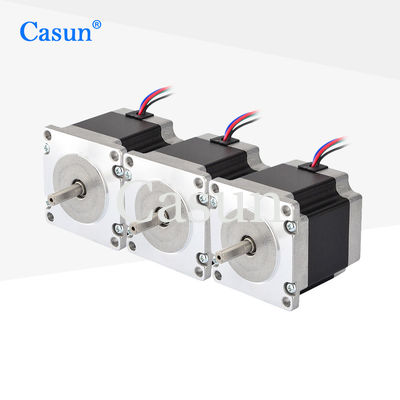

1.8 Degre 2 Phase 54mm Length NEMA 23 Stepper Motor With CE ROHS ISO
By adjusting the pulse frequency sent to the motor, the speed of the stepper motor can be precisely controlled.
3D printers, CNC machine tools, automated production lines, and industrial robots.
Features:
Step Angel |
1.8 ° |
Fram Size |
57 mm |
Number of Phase |
2 Phase |
Rated Current |
2.5 A |
Holding Torque |
1.0 N.m |
Resistance |
1.2 ohm |
Inductance |
4.1 mH |
Rotor Inertia |
260 g-cm² |
Motor weight |
0.6 kg |
Number of leads |
4 |
Connection |
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 57SHD4013-21B | 0.6N.m | 1.8° | 41mm | D Shaft-21mm | 1.0A |
| 57SHD4415-21B | 1.1N.m | 1.8° | 54mm | D Shaft-21mm | 3.0A |
| 57SHD4816-21B | 2.0N.m | 1.8° | 76mm | D Shaft-21mm | 3.0A |
| 57SHD4913-21B | 2.5N.m | 1.8° | 83mm | D Shaft-21mm | 3.0A |
| 57SHD4934-20B | 3.0N.m | 1.8° | 100mm | D Shaft-20mm | 3.0A |
Download
Encoder |
Brake |
Gearbox |
Shaft |
|
|
|
|
