| Tên thương hiệu: | Casun |
| Số mô hình: | 42SHD4419-24Q |
| MOQ: | 1 cái |
| Giá: | $18.54-$30.94 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

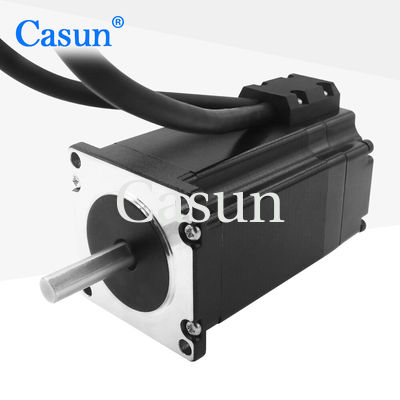

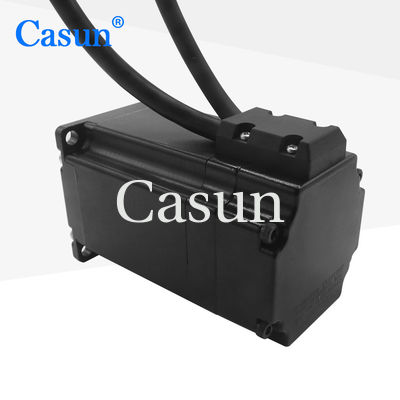

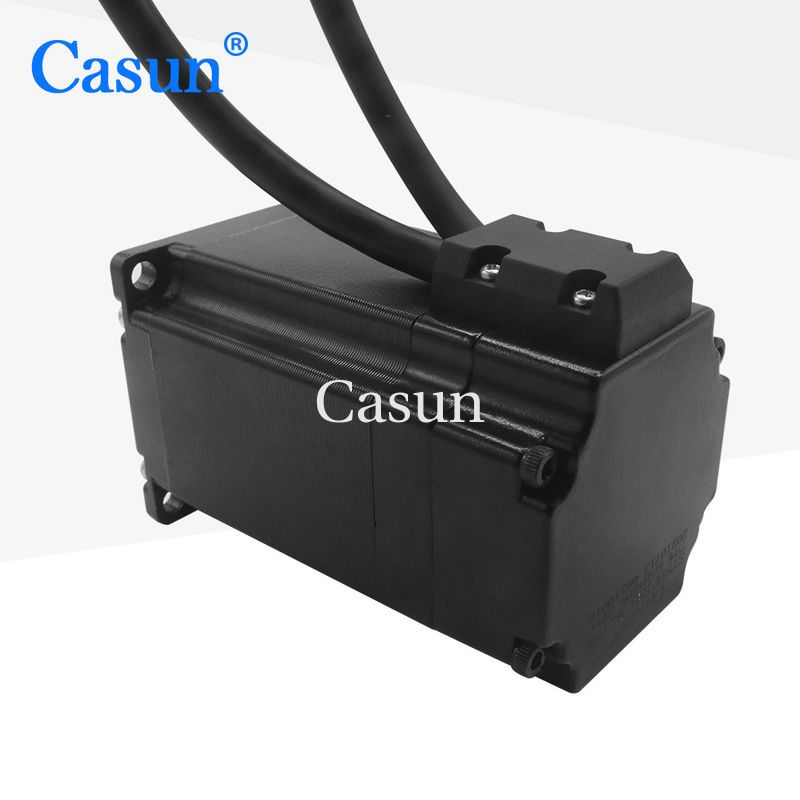

1. 8 degree Casun Closed Loop Stepper Motor 2400mN.M 57x76mm Stepper Motor With Nema 23 Stepper Motor Controller
Nema23 Closed Loop Stepper Motor 240mN.m 3Amp with Encoder
Nema 23 is a standard specification for stepper motors that defines the mounting dimensions. It indicates that the motor has a faceplate size of 2.3 x 2.3 inches or approximately 57 x 57mm. Nema 23 motors are commonly used in various applications that require moderate torque and accurate positioning.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
57mm |
|
Number of Phase
|
2Phase |
|
Rated Current
|
3Amp |
|
Holding Torque
|
240mN.m |
|
Resistance
|
3.3hm |
|
Inductance
|
2.8mH |
|
Rotor Inertia
|
72g-cm² |
|
Motor weight
|
1 kg |
|
Encoder Pulsh
|
1240PPS |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Encoder
can customized
Voltage: 5 v
Output: A + A - B + B -
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
| 42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
| 42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
| 42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
| 42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
