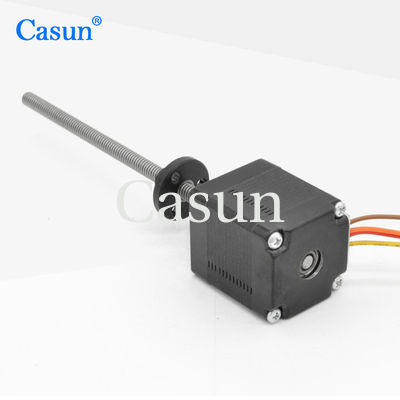

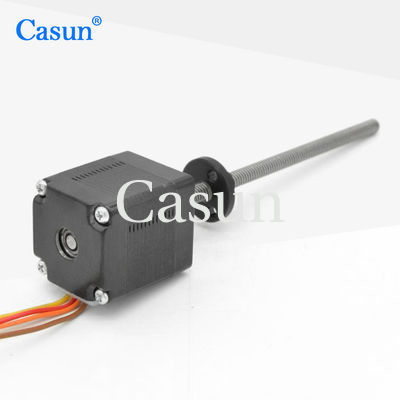

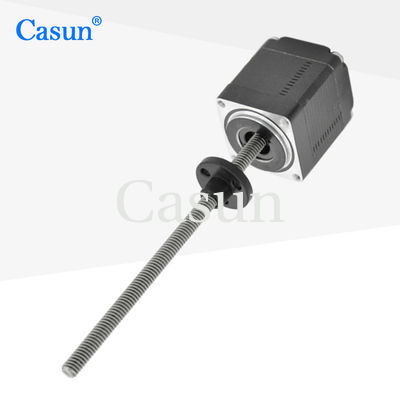

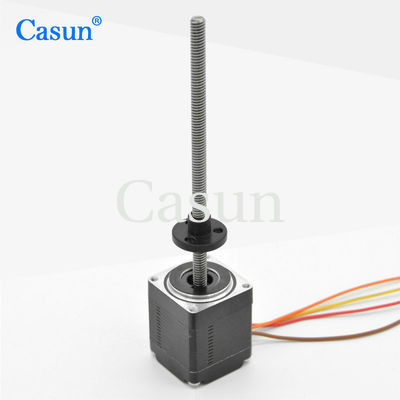

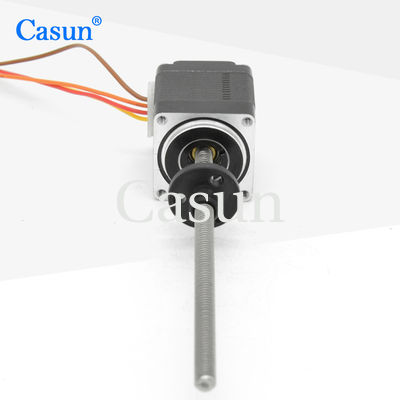

Nema 11 Casun 2 Phase Stepper Motors 1.8 Degree Casptive Motors

28*28*32 mm 0.67A NEMA 11 Captive Stepper Motor with CE, ROHS, and ISO

Nema 11 Casun 2 Phase Stepper Motors 1.8degree Casptive Motors With CE

It can go forward and backward, and by twisting the screw rod in the opposite direction, the motor can also move forward and backward.

can be accurately altered by managing the signal.

Features:

expert in drivetrain solutions

Seek vendors for high-tech and electronic industry equipment with "multiple international certifications"!

Expert manufacturing, development, and research

alterations upon request

Motor Specifications

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

FAQ

1. who are we?

We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Stepper Motor,BLDC Motor

4. why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal;

Language Spoken:English,Chinese,Japanese

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Please click the "Get  a quote" button below to tell us your requirements.
