| Tên thương hiệu: | Casun |
| Số mô hình: | 42SHD4079-24BH |
| MOQ: | 1 cái |
| Giá: | $3.14-$5 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

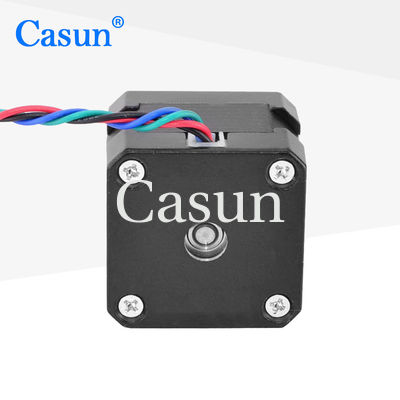

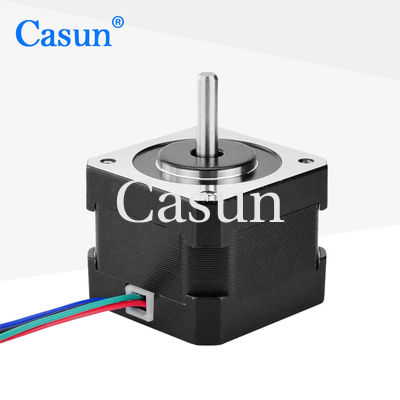

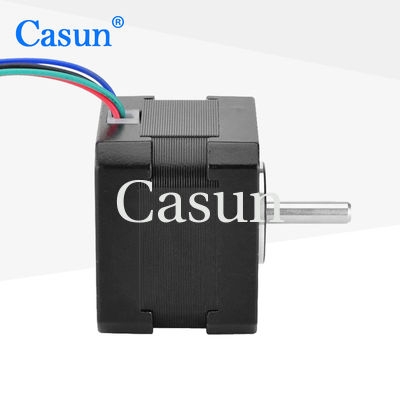

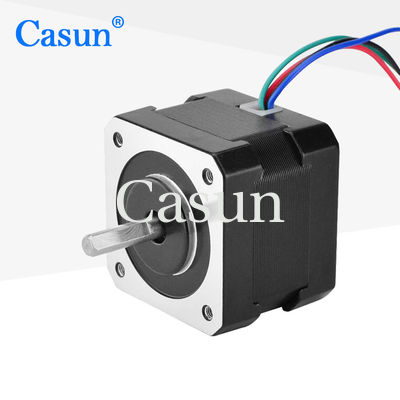

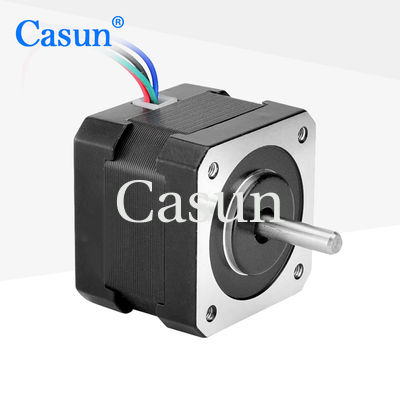

1.33A 42*42mm Stepping Motor NEMA 23 DC Motor For Medical Equipment With ROHS
The 42mm stepper motor can be used in medical equipment, such as precision medical imaging equipment or surgical robots.
Excellent performance in applications that require quick start stop and frequent changes in movement direction.
Features:
Step Angel |
1.8 ° |
Fram Size |
42 mm |
Number of Phase |
2 Phase |
Rated Current |
1.33 A |
Holding Torque |
320 mN.m |
Resistance |
2.7 ohm |
Inductance |
4.2 mH |
Rotor Inertia |
38 g-cm² |
Motor weight |
0.2 kg |
Number of leads |
4 |
Connection |
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Motor Length | Type of Shaft | Rated Current |
| 42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
| 42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
| 42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
| 42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
| 42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
