| Tên thương hiệu: | Casun |
| Số mô hình: | 42SHD4071-24BH |
| MOQ: | 1 cái |
| Giá: | $3.14-$5 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

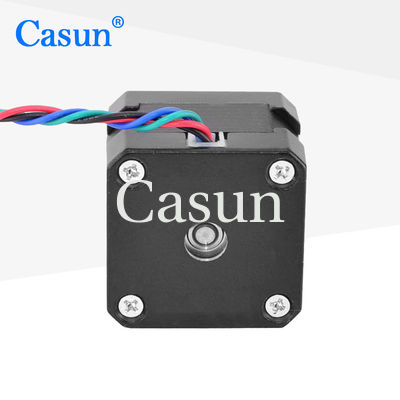

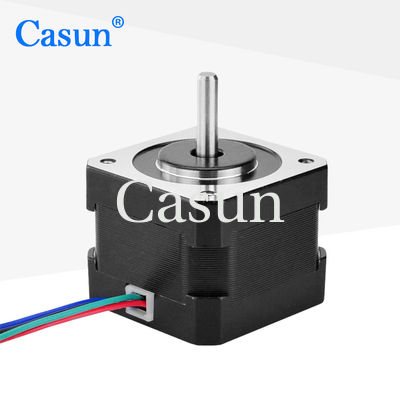

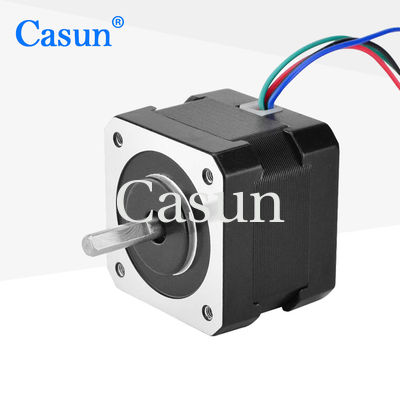

42*42**34mm With CE ISO RHO Certification 2 Phase Stepping Motor Nema 17
The 42mm stepper motor is commonly used in 3D printers to drive the position and movement of the print head.
High precision and reliability enable printers to accurately perform printing operations.
Features:
Step Angel |
1.8 ° |
Fram Size |
42 mm |
Number of Phase |
2 Phase |
Rated Current |
0.6 A |
Holding Torque |
320 mN.m |
Resistance |
20 ohm |
Inductance |
29 mH |
Rotor Inertia |
38 g-cm² |
Motor weight |
0.2 kg |
Number of leads |
4 |
Connection |
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Motor Length | Type of Shaft | Rated Current |
| 42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
| 42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
| 42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
| 42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
| 42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
