| Tên thương hiệu: | Casun |
| Số mô hình: | 60SHD4701-24S |
| MOQ: | 1 cái |
| Giá: | $18.00-$25 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

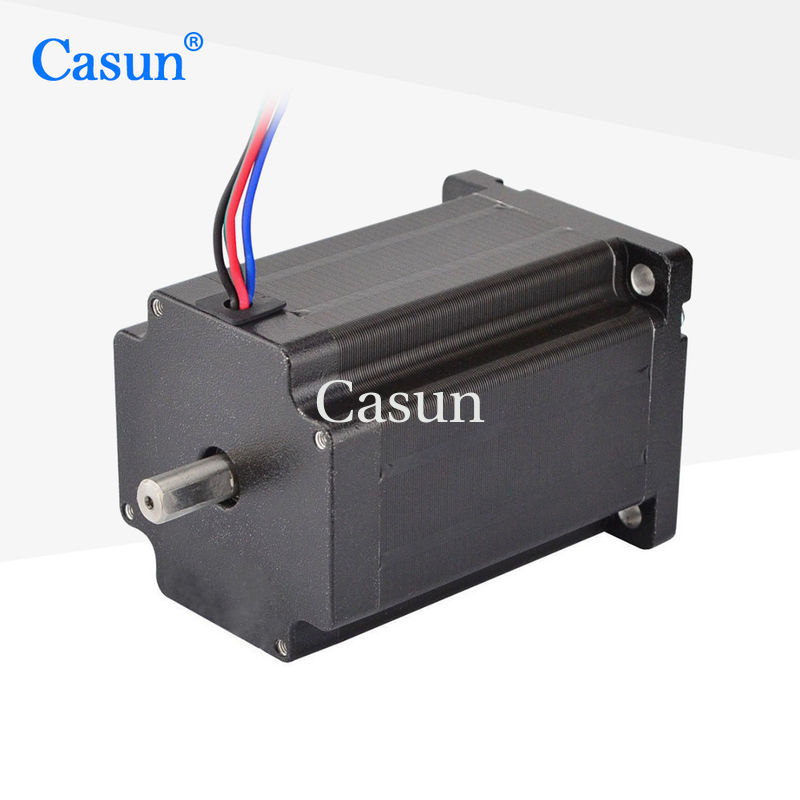

NEMA24 Step Motor 4100mN.M Double Shaft Stepper Motor With High Quality
Double Shaft Stepper motor NEMA 24 4100mN.m 60x60x100mm hybrid step motor for Automation machine.
Size: The NEMA 24 standard specifies the mounting dimensions for stepper motors. In this case, the motor has a frame size of 60x60mm and a length of 100mm.

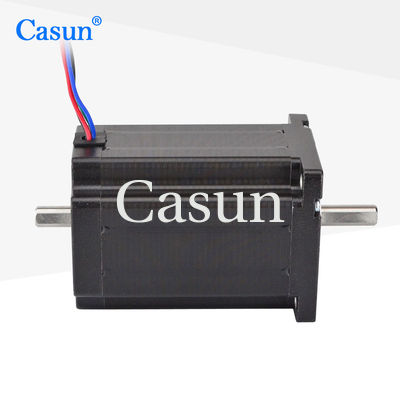

Double Shaft: The motor has two output shafts, allowing you to connect and drive two separate mechanisms or loads simultaneously. This can be useful in applications where multiple components need to be driven independently.
Applications: NEMA 24 double shaft stepper motors are commonly used in various automation applications, such as CNC machines, 3D printers, robotic arms, and automated manufacturing equipment. Their high torque output makes them suitable for driving mechanisms that require precise positioning and control.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
60mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
3.5Amp |
|
Holding Torque
|
4100mN.m |
|
Resistance
|
-hm |
|
Inductance
|
-mH |
|
Rotor Inertia
|
-g-cm² |
|
Motor weight
|
1.5kg |
|
|
|
|
|
|
Motor
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
| 42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
| 42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
| 42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
| 42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
Download
We have the ability to customize motor features such as shafts, winding parameters, installation dimensions, lead wires, and connectors can help to ensure that the motor is a perfect fit for the customer's application. This can lead to improved efficiency, increased reliability, and reduced downtime.
