| Tên thương hiệu: | Casun |
| Số mô hình: | 14SHD4001-15B |
| MOQ: | 1 cái |
| Giá: | $20-$25 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |
Nema6 14x14x30mm 0.3A Casun Stepper Motor Nema 6 Mini Stepper Motor For video conferencing machine.
Motor Specifications
NEMA 6 form factor: NEMA 6 refers to the motor's frame size. It indicates the physical dimensions and mounting specifications of the motor. In this case, the motor has a 14x14x30mm size, which describes its width, height, and length.
Current rating: The motor has a current rating of 0.3A (Amperes). The current rating indicates the amount of electrical current required to operate the motor effectively.
Application: The motor is intended for use in a video conferencing machine. Stepper motors are commonly used in various applications that require precise control of motion, such as robotics, automation, 3D printers, and motion control systems.
Step Angel |
1.8 ° |
Fram Size |
14 mm |
Number of Phase |
2 Phase |
Rated Current |
0.3 A |
Holding Torque |
5.8 mN.m |
Resistance |
3.8 ohm |
Inductance |
21mH |
Rotor Inertia |
2g-cm² |
Motor weight |
0.08 kg |
Number of leads |
4 |
Connection |
Bipolar |

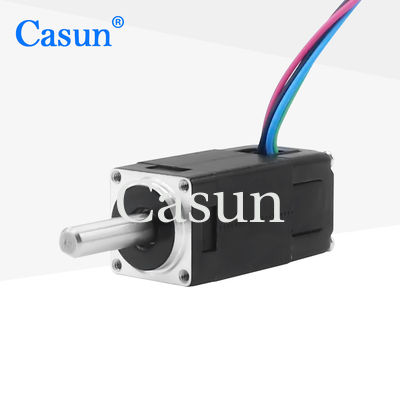

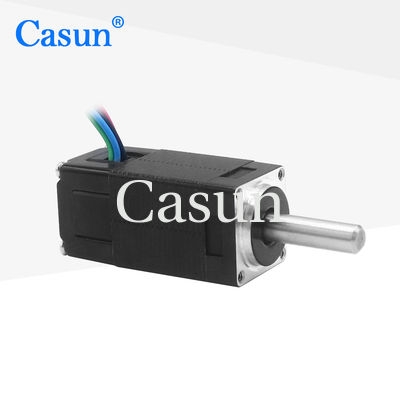

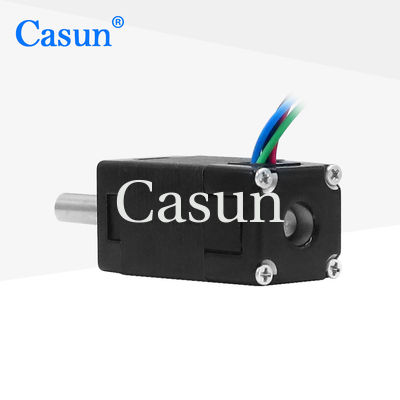

Appearance
