| Tên thương hiệu: | Casun |
| Số mô hình: | E39C-09 |
| MOQ: | 1 cái |
| Giá: | $18-$23 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |
nema14 hybrid stepper motor 39x39x43.6mm 120mN.m Multisport motor
The Nema14 stepper motor you described has the following specifications:
Step angle: 1.8 degrees per step
Motor size: 39 x 39mm
Rated current: 0.4A
Holding torque: 120mN.m
Weight: 0.3kg
Movement method:
1. The output shaft A can rotate (controlled by port 2);
2. The output shaft B can rotate (controlled by port 1).
Note: The above two motion modes are controlled by different ports.
Each motion mode can run independently at the same time without interfering with each other.
Motor Specifications
Step Angel |
1.8 ° |
Fram Size |
39mm |
Number of Phase |
2 Phase |
Rated Current |
0.4A |
Holding Torque |
120mN.m |
Resistance |
30ohm |
Inductance |
45mH |
Rotor Inertia |
20 g-cm² |
Motor weight |
0.3kg |
Number of leads |
4 |
Connection |
Bipolar |

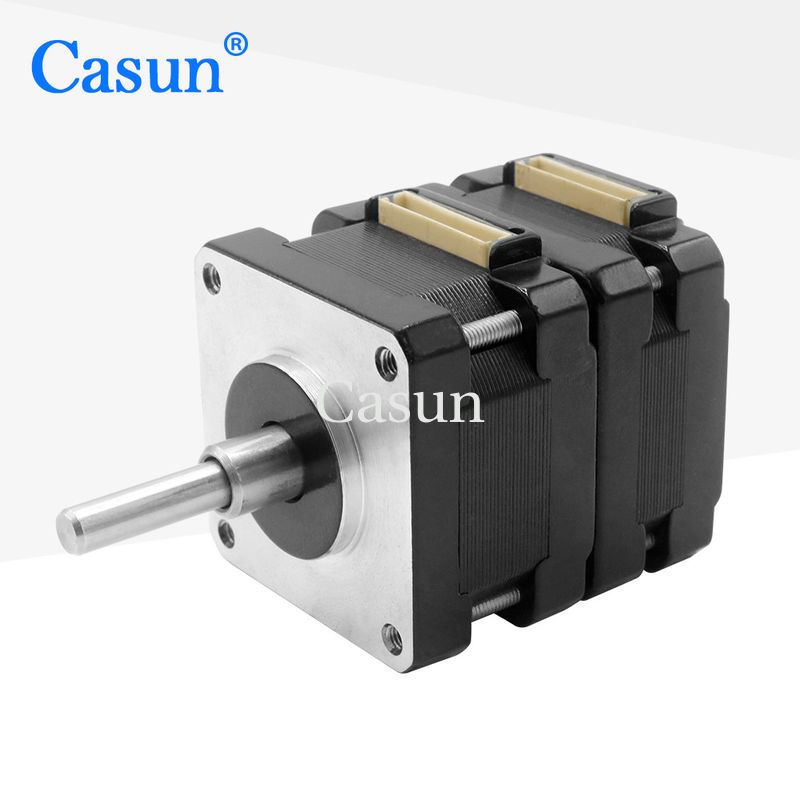

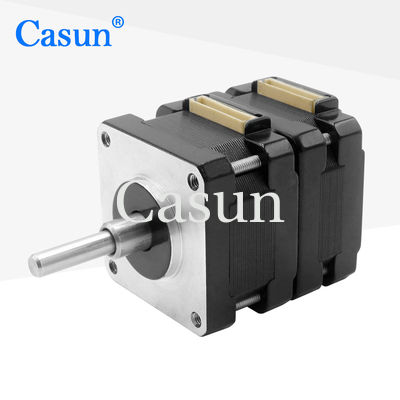

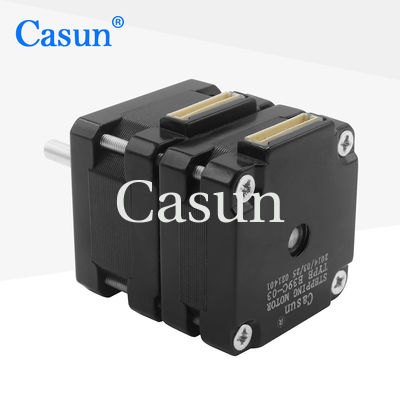

Appearance
