| Tên thương hiệu: | Casun |
| Số mô hình: | 39SHD0001-20 |
| MOQ: | 1 cái |
| Giá: | $3.38-$4.38 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |
Casun hybrid stepper motor nema16 39x39x20mm 100mN.m for automation equipment
The Nema16 stepper motor you described has the following specifications:
Step angle: 1.8 degrees per step
Motor size: 39 x 20mm
Rated current: 0.48A
Holding torque: 100mN.m (14.2 oz-in)
Weight: 0.12kg (4.2 oz)
Motor Specifications
Step Angel |
1.8 ° |
Fram Size |
39mm |
Number of Phase |
2 Phase |
Rated Current |
0.48A |
Holding Torque |
100mN.m |
Resistance |
25ohm |
Inductance |
25mH |
Rotor Inertia |
11 g-cm² |
Motor weight |
0.12kg |
Number of leads |
4 |
Connection |
Bipolar |

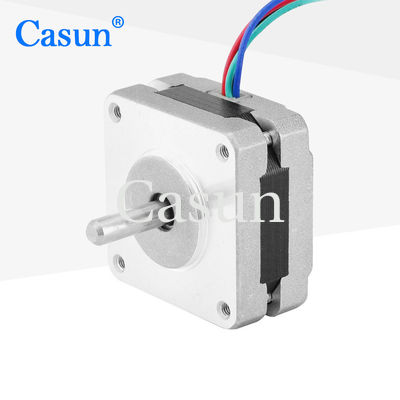

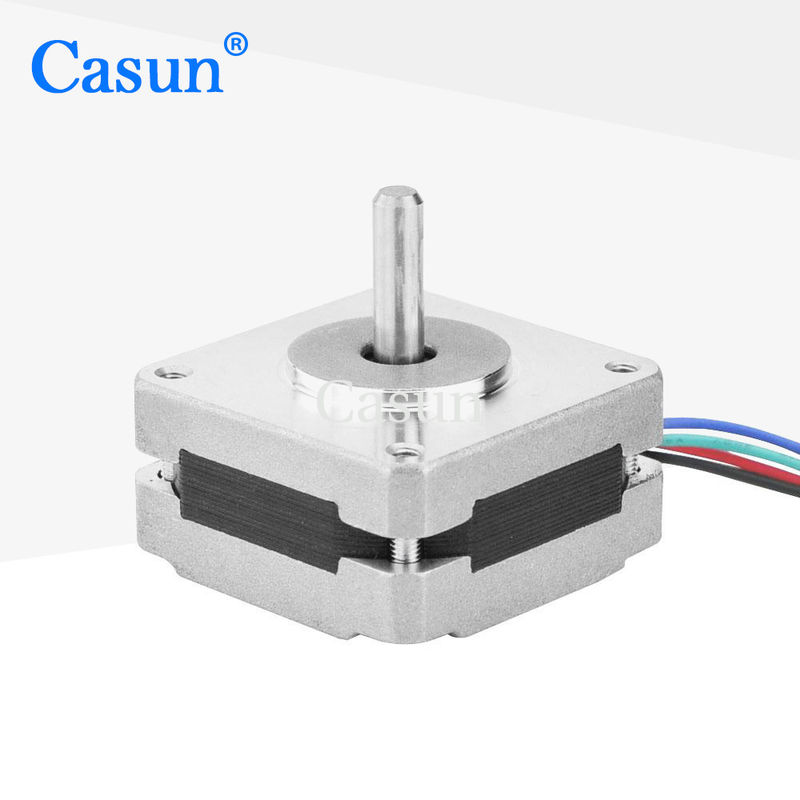

Appearance
Step angle: The step angle can be customized to meet your specific requirements. For example, a motor with a smaller step angle (e.g., 0.9 degrees) will provide finer control of motion.
Motor size: The size of the motor can be adjusted to fit your specific application. A larger motor may provide more torque, while a smaller motor may be more compact and lightweight.
Rated current: The rated current can be customized based on your specific application requirements. A higher rated current will provide more torque, but may also generate more heat.
Holding torque: The holding torque can be customized based on your specific application requirements. A higher holding torque will allow the motor to hold a larger load.
Connector type: The connector type can be customized to match your specific application requirements. For example, you may need a motor with an aviation connector or a specific type of wiring.
Shaft type: The shaft type can be customized based on your specific application requirements. For example, you may need a motor with a longer or shorter shaft, or a motor with a different type of shaft (e.g., D-shaft or round shaft).
