| Tên thương hiệu: | Casun |
| Số mô hình: | 42SHD0437-24BH |
| MOQ: | 1 cái |
| Giá: | $3.14-$5 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

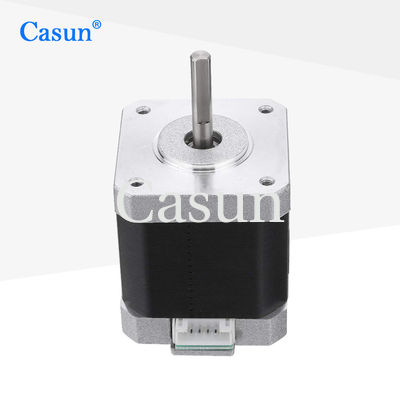

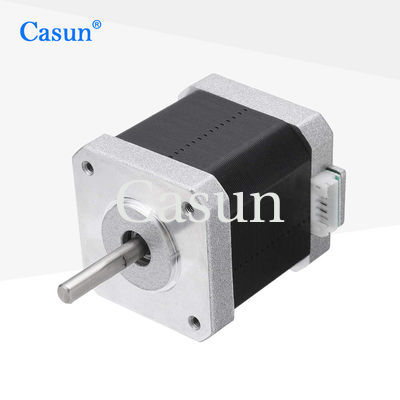

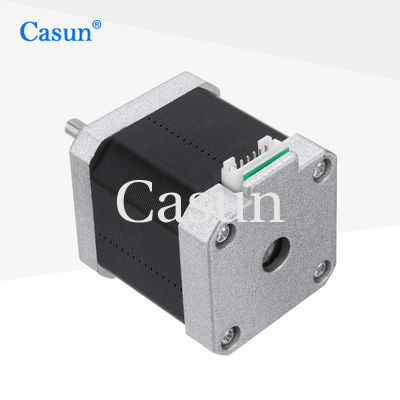

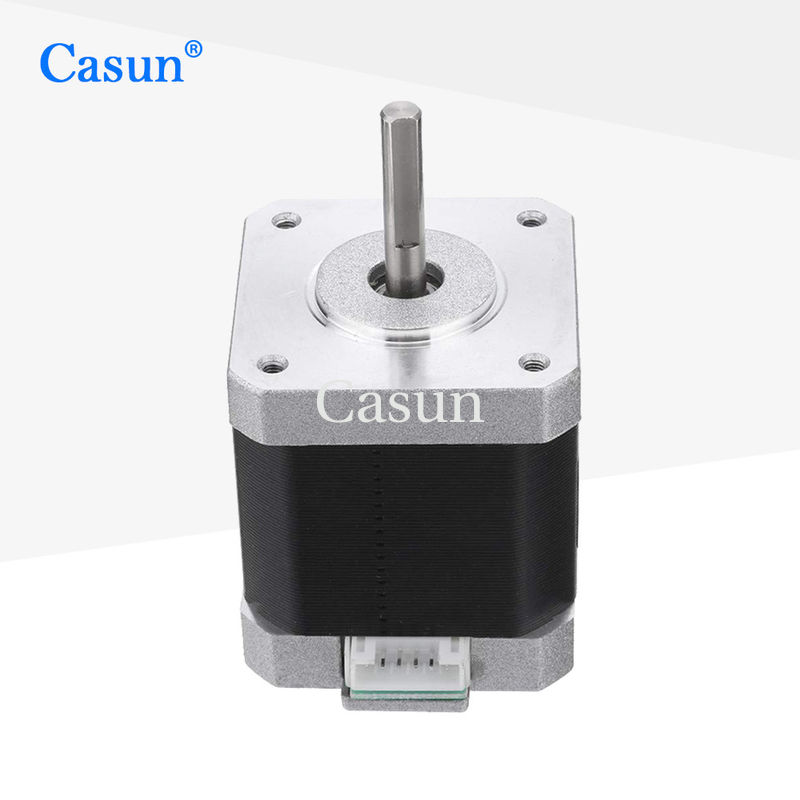

Casun Stepper motor 550mN.m 3.0V DC Nema 17 Hybrid Stepper Motor 42x42x48mm with factory price
【42SHD0437】1.8 Degree 2 Phase 3.0V DC Nema 17 Hybrid Stepper Motor 42*42*48mm for Stage Lighting
The 42mm Hybrid Stepper Motor Series seems to be a versatile and powerful option for a variety of applications.
The ability to reduce vibration and achieve higher step resolution through the use of a microstepping driver is a valuable feature, as it allows for greater precision and control in the motor's movement. Additionally, the option to request a customized configuration is a great way to ensure that the motor meets the specific needs of the customer's application.
42mm Hybrid Stepper Motor Series could be a great choice for anyone looking for a reliable and customizable stepper motor solution.
Features:
Step Angel |
1.8 ° |
Fram Size |
42 mm |
Number of Phase |
2 Phase |
Rated Current |
1.68 A |
Holding Torque |
550 mN.m |
Resistance |
1.8 ohm |
Inductance |
4.5 mH |
Rotor Inertia |
72 g-cm² |
Motor weight |
0.38 kg |
Number of leads |
4 |
Connection |
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Motor Length | Type of Shaft | Rated Current |
| 42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
| 42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
| 42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
| 42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
| 42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
