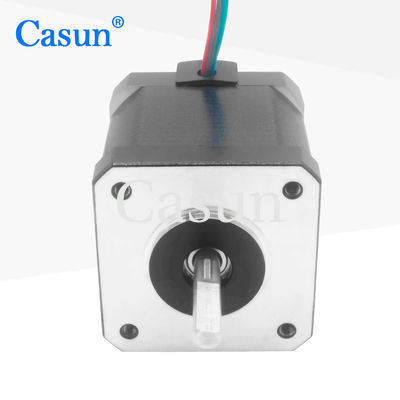

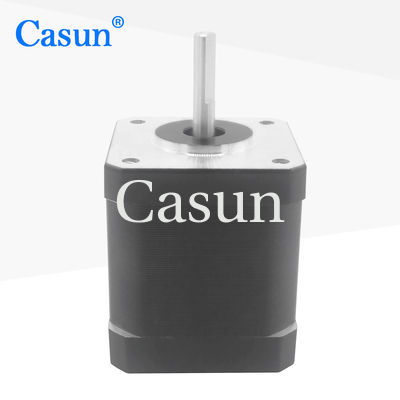

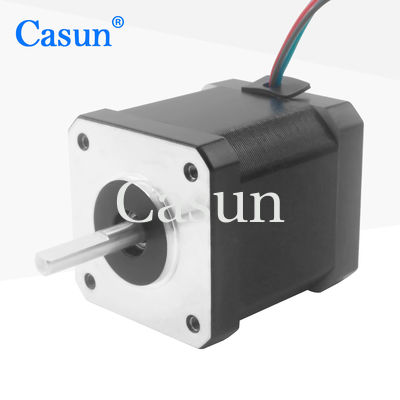

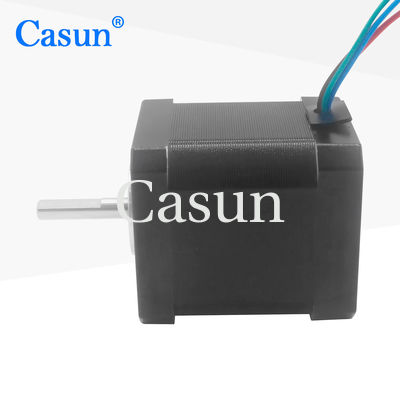

42x42x48mm 1.8 Degree High Temp Stepper Motor 0.59N.M 2.8A CE ROHS

42x42x48mm 1.8 Degree High Temp Stepper Motor 0.59N.M 2.8A CE ROHS

Tên thương hiệu:	Casun
Số mô hình:	G42SHD4425-24BH
MOQ:	1 cái
Giá:	$3.14-$5
Điều khoản thanh toán:	D/A, T/T, L/C, D/P
Khả năng cung cấp:	40000+Chiếc+Tháng

Thông tin chi tiết

Mô tả sản phẩm

Thông tin chi tiết

Nguồn gốc:

Trung Quốc

Chứng nhận:

CE,ROSH,ISO

bước thiên thần:

1,8°

Giữ mô-men xoắn:

590mN.m

Hiện hành:

2.8A

chiều dài động cơ:

48mm

Trục:

Phay trục phẳng dài 24mm

Lớp cách nhiệt:

Lớp H (180oC)

tùy chỉnh:

Động cơ có thể được thiết kế và sản xuất theo yêu cầu tùy chỉnh.

chi tiết đóng gói:

Thùng: 36x29x14cm

Làm nổi bật:

1.8 Degree High Temp Stepper Motor

High Temp Stepper Motor 2.8A

Mô tả sản phẩm

With a step angle of 1.8 degrees and a 2-phase design, this stepper motor provides precise and accurate positioning in a small package - measuring just 42mm x 42mm x 48mm.

With a high temperature rating, it can withstand environments that would cause other motors to fail. It has a holding torque of 0.59N.m and a current rating of 2.8A. It is CE and ROHS certified, ensuring that it meets the highest standards of quality and safety.

Use it in applications such as 3D printing, CNC machines, and robotics.

Features:

High torque and high precision
For high-tech industry and electronic industry equipment
Available in single or double shaft versions
Provide "multiple international certifications"
Established in China for 12 years and has served more than 800 customers.

Appearance

42x42x48mm 1.8 Degree High Temp Stepper Motor 0.59N.M 2.8A CE ROHS 0

Dimensions

42x42x48mm 1.8 Degree High Temp Stepper Motor 0.59N.M 2.8A CE ROHS 1

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	2.8 A
Holding Torque	590 mN.m
Resistance	1.4 ohm
Inductance	3.0 mH
Rotor Inertia	82 g-cm²
Motor weight	0.42 kg
Number of leads	4
Insulation class	Class H (180℃)

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
