| Tên thương hiệu: | Casun |
| Số mô hình: | F57SHD4228-21H |
| MOQ: | 1 cái |
| Giá: | $3.14-$5 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

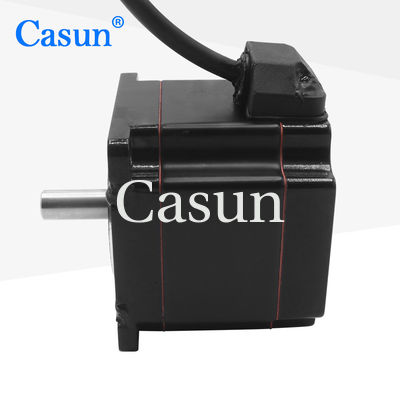

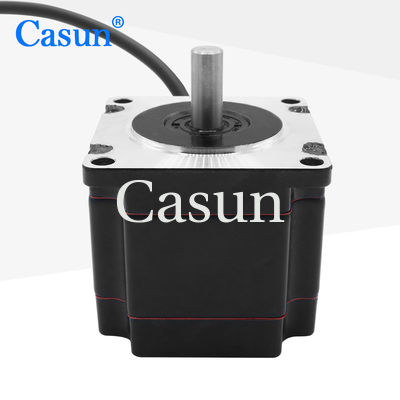

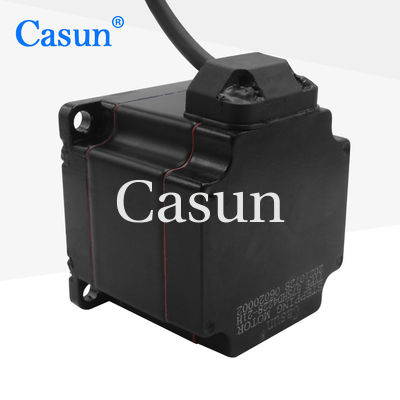

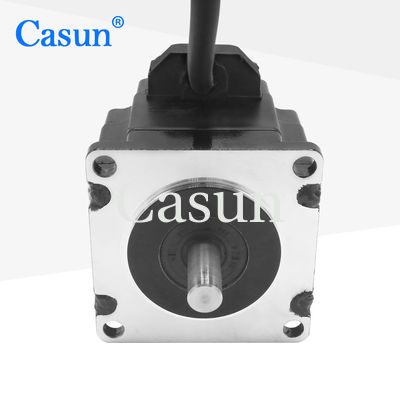

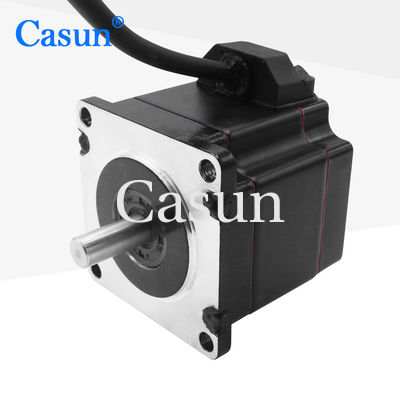

The NEMA 23 waterproof stepper motor has been specially designed and sealed.
It can adapt to harsh environmental conditions and therefore has high reliability and stability.
Features:
Step Angel |
1.8 ° |
Fram Size |
57 mm |
Number of Phase |
2 Phase |
Rated Current |
2.5 A |
Holding Torque |
1100 mN.m |
Resistance |
1.15 ohm |
Inductance |
3.3 mH |
Rotor Inertia |
220 g-cm² |
Motor weight |
0.62 kg |
Number of leads |
4 |
Connection |
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 57SHD4013-21B | 0.6N.m | 1.8° | 41mm | D Shaft-21mm | 1.0A |
| 57SHD4415-21B | 1.1N.m | 1.8° | 54mm | D Shaft-21mm | 3.0A |
| 57SHD4816-21B | 2.0N.m | 1.8° | 76mm | D Shaft-21mm | 3.0A |
| 57SHD4913-21B | 2.5N.m | 1.8° | 83mm | D Shaft-21mm | 3.0A |
| 57SHD4934-20B | 3.0N.m | 1.8° | 100mm | D Shaft-20mm | 3.0A |
