| Tên thương hiệu: | Casun |
| Số mô hình: | 42SHD6823-24BH |
| MOQ: | 1 cái |
| Giá: | $3.14-$5 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

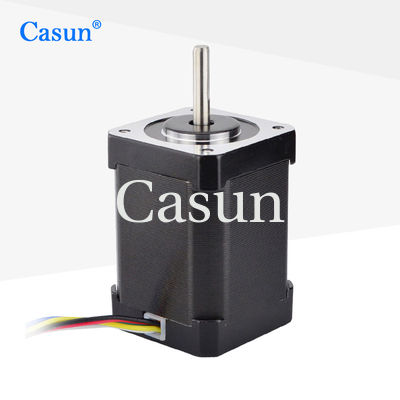

The NEMA 17 stepper motor is used to control various stages of the packaging process, such as filling, sealing, and packaging.
Compared to other types of motors, NEMA 17 stepper motors typically have lower costs.
Features:
Step Angel |
1.8 ° |
Fram Size |
42 mm |
Number of Phase |
4 Phase |
Rated Current |
1.2 A |
Holding Torque |
650 mN.m |
Resistance |
6.0 ohm |
Inductance |
7.0 mH |
Rotor Inertia |
102 g-cm² |
Motor weight |
0.50 kg |
Number of leads |
6 |
Connection |
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Motor Length | Type of Shaft | Rated Current |
| 42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
| 42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
| 42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
| 42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
| 42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
Download
Encoder |
Brake |
Gearbox |
Shaft |
|
|
|
|
