| Tên thương hiệu: | Casun |
| Số mô hình: | TB6600 |
| MOQ: | 1 cái |
| Giá: | $3-$6 |
| Điều khoản thanh toán: | L/C, D/A, D/P, T/T |
| Khả năng cung cấp: | 5000 chiếc + tháng |

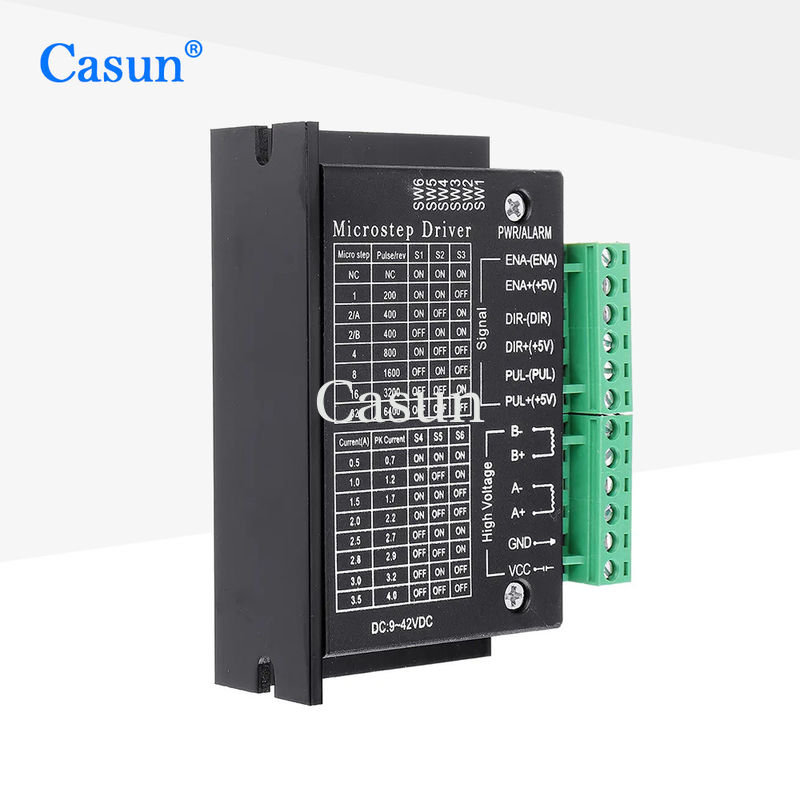

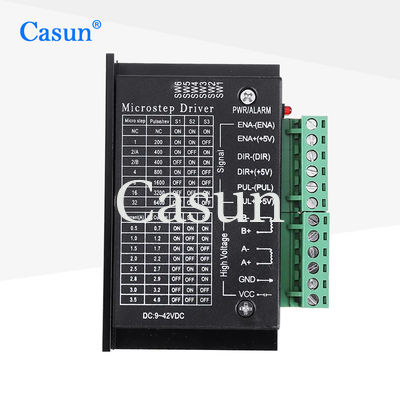

TB6600 Stepper Motor Driver 32 subdivision 4.0A 42V pulse 3-24v controller 3D Printer driver
| Product Name | TB6600 |
| Size | 96*57*28mm |
| Supply voltage | 9-24V |
| Color | Black |
Specifications:
This drive is an upgraded version of the TB6600, the breakdown of heightening to 32 segments, for high segmentation purposes. Applicable stepper motor: 42,57,86 type of 2-phase 4-phase (4-wire 6 wire line 8)
| Micro stp | Pulse/rev | S1 | S2 | S3 |
| NC | NC | ON | ON | ON |
| 1 | 200 | ON | ON | OFF |
| 2/A | 400 | ON | OFF | ON |
| 2/B | 400 | OFF | ON | ON |
| 4 | 800 | ON | OFF | OFF |
| 8 | 1600 | OFF | ON | OFF |
| 16 | 3200 | OFF | OFF | ON |
| 32 | 6400 | OFF | OFF | OFF |
| Current(A) | PK Current | S4 | S5 | S6 |
| 0.5 | 0.7 | ON | ON | ON |
| 1.0 | 1.2 | ON | OFF | ON |
| 1.5 | 1.7 | ON | ON | OFF |
| 2.0 | 2.2 | ON | OFF | OFF |
| 2.5 | 2.7 | OFF | ON | ON |
| 2.8 | 2.9 | OFF | OFF | ON |
| 3.0 | 3.2 | OFF | ON | OFF |
| 3.5 | 4.0 | OFF | OFF | OFF |
Features:
Suitable for stepping motor: 42-phase, 47-phase and 86-phase (4-wire, 6-wire and 8-wire)
1, 9V-42V DC power supply;
2, H-bridge bipolar constant-phase flow-driven;
3, the maximum output current of 4.0A eight optional;
4, up to 32 segments of six kinds of sub-modes available;
5, the input signal is high-speed optical isolation.
6, standard common anode single pulse interface;
7, offline hold function;
8, semi-enclosed chassis can accommodate more demanding environment;
9, provide energy semiautomatic current lock function;
10, built-in thermal protection and overcurrent protection.
