| Tên thương hiệu: | Casun |
| Số mô hình: | 35SHD0003-23H |
| MOQ: | 1 cái |
| Giá: | $4-$5.2 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

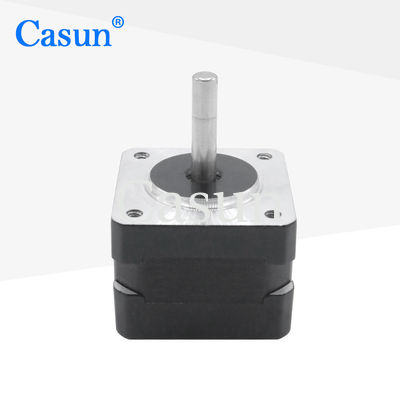

35x35x40mm 0.4A Casun Stepper Motor Nema 14 Mini Stepper Motor For Medical beauty equipment
Nema 14 Casun Stepper Motor 2 Phase 350mN.m 0.4A 35x35x40mm Stepping Motor for 3D Printer Printer Parts
Motor Specifications
Step Angel |
1.8 ° |
Fram Size |
35 mm |
Number of Phase |
2 Phase |
Rated Current |
0.4A |
Holding Torque |
350 mN.m |
Resistance |
22ohm |
Inductance |
8mH |
Rotor Inertia |
12 g-cm² |
Motor weight |
0.15 kg |
Number of leads |
0 |
Connection |
Bipolar |
Appearance
The Nema 14 Casun stepper motor you mentioned is a specific type of stepper motor that belongs to the NEMA (National Electrical Manufacturers Association) standard size 14 category. Stepper motors are widely used in various applications that require precise position control, such as 3D printers, CNC machines, robotics, and automation systems.
Stepper motors like the Nema 14 Casun are commonly controlled using specialized motor drivers or controllers. These drivers provide the necessary electrical signals to energize the motor windings in the correct sequence, allowing precise control over the motor's position and speed.
