20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder

Tên

20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder

Tên thương hiệu: Casun
Số mô hình: B20SHD4351-56GPQ
MOQ: 1 cái
Giá: $20-$28
Điều khoản thanh toán: D/A, T/T, L/C, D/P
Khả năng cung cấp: 40000+Chiếc+Tháng
Thông tin chi tiết
Mô tả sản phẩm
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Chứng nhận:
CE,ROHS,ISO
bước thiên thần:
1,8°
Giữ mô-men xoắn:
450mN.m
Hiện hành:
0,5
chiều dài động cơ:
27,5mm
Trục:
Vít bi 55,5mm
tùy chỉnh:
Động cơ có thể được thiết kế và sản xuất theo yêu cầu tùy chỉnh.
chi tiết đóng gói:
Thùng: 38x29x18cm
Làm nổi bật:

27.5mm NEMA 8 Close Loop Motor

,

20×20×27.5mm NEMA 8

,

NEMA 8 Stepper Motor With Encoder

Mô tả sản phẩm

Features:

  • Accept contract manufacturing

  • For high-tech industry and electronic industry equipment

  • Available in single or double shaft versions

  • High torque and high precision

  • Established in China for 12 years and has served more than 800 customers





Motor Specifications



Step Angel

1.8 °

Fram Size

20 mm

Number of Phase

2 Phase

Rated Current

0.5 A

Holding Torque

14 mN.m

Resistance

5.5 ohm

Inductance

1.5 mH

Rotor Inertia

2 g-cm²

Motor weight

0.08 kg

Number of leads

4

Connection

Bipolar

Appearance

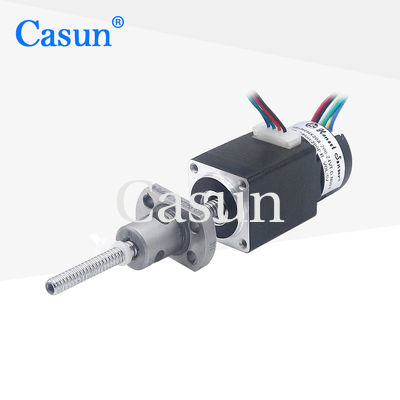

20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder 0

Dimensions

20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves







Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

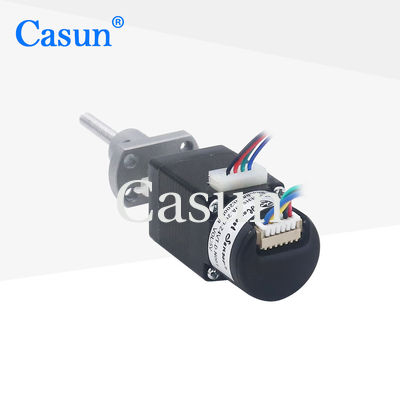

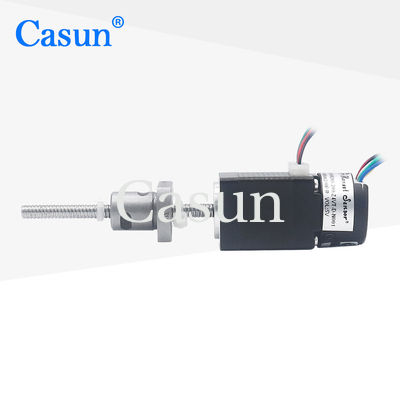

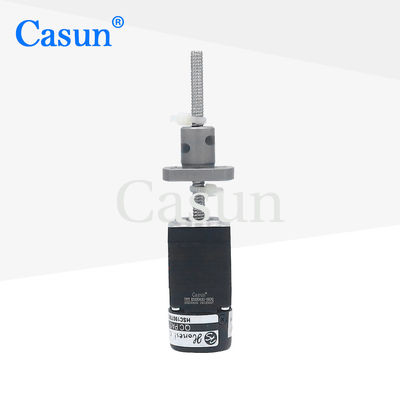

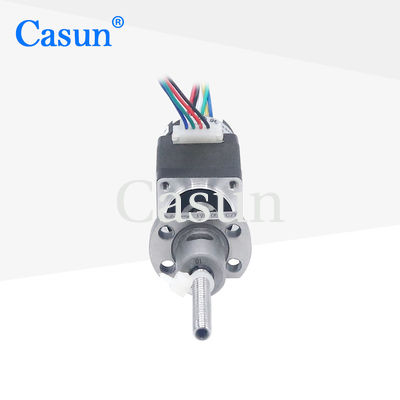

20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder 2 20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder 3 20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder 4 20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder 5



Please click the "Get a quote" button below to tell us your requirements.
