| Tên thương hiệu: | Casun |
| Số mô hình: | 42SHD0440-26B |
| MOQ: | 1 cái |
| Giá: | $3.14-$5 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

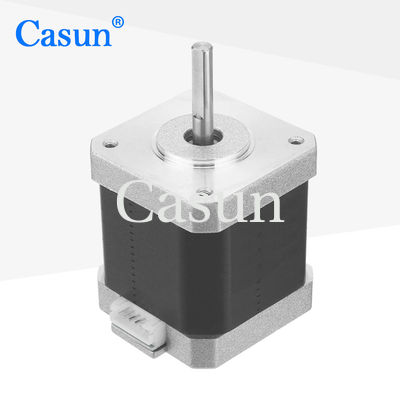

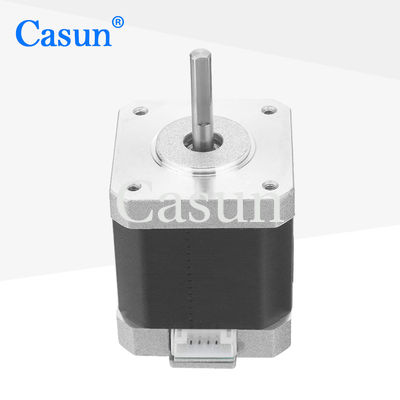

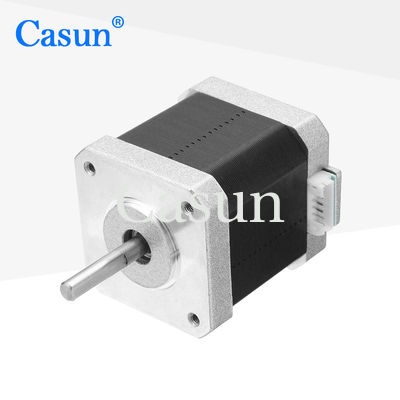

NEMA 17 motors are generally widely supplied and supported because they are one of the standard sizes commonly found on the market.
Printers, Engraving tools, Robotics, and more
Features:
Step Angel |
1.8 ° |
Fram Size |
42 mm |
Number of Phase |
2 Phase |
Rated Current |
0.4 A |
Holding Torque |
400 mN.m |
Resistance |
30 ohm |
Inductance |
37 mH |
Rotor Inertia |
72 g-cm² |
Motor weight |
0.38 kg |
Number of leads |
4 |
Connection |
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Motor Length | Type of Shaft | Rated Current |
| 42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
| 42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
| 42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
| 42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
| 42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
