| Tên thương hiệu: | Casun |
| Số mô hình: | 42SHD4259-22 |
| MOQ: | 1 cái |
| Giá: | $3.14-$5 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

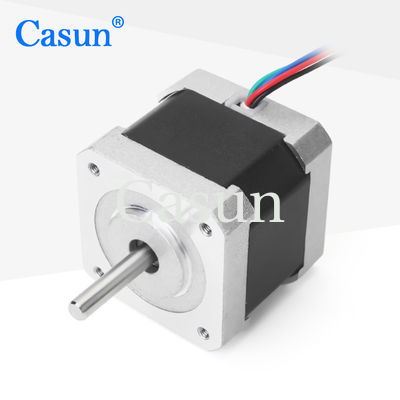

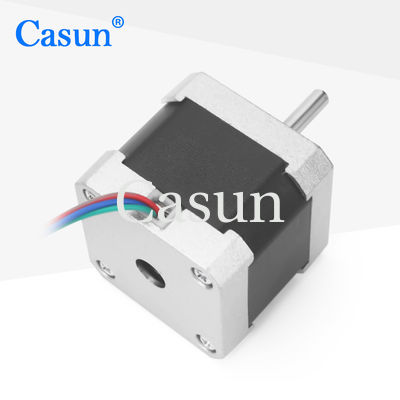

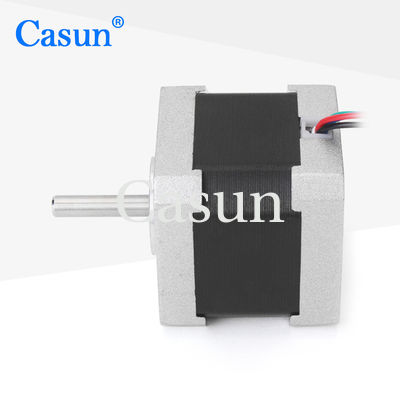

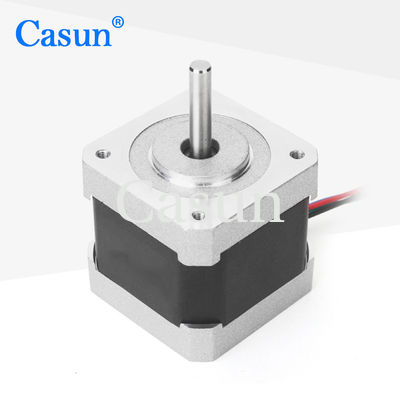

The NEMA 17 stepper motor can achieve very precise position control, and its movement can be carried out according to predetermined steps, which can stay in any position with high accuracy
Choose a baseline version or request your own customized configuration.
Features:
Step Angel |
1.8 ° |
Fram Size |
40 mm |
Number of Phase |
2 Phase |
Rated Current |
1.2 A |
Holding Torque |
480 mN.m |
Resistance |
6.0 ohm |
Inductance |
11.0 mH |
Rotor Inertia |
57 g-cm² |
Motor weight |
0.24 kg |
Number of leads |
4 |
Connection |
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Motor Length | Type of Shaft | Rated Current |
| 42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
| 42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
| 42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
| 42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
| 42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
