| Tên thương hiệu: | Casun |
| Số mô hình: | 39SHD4314-18A |
| MOQ: | 1 cái |
| Giá: | $4.14-$6.98 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |
The 39mm motor generates less noise compared to other types of motors, which can reduce the impact on the environment and users
Widely used in some low noise application scenarios
Features:
Step Angel |
1.8 ° |
Fram Size |
39 mm |
Number of Phase |
2 Phase |
Rated Current |
1.0 A |
Holding Torque |
189 mN.m |
Resistance |
5.0 ohm |
Inductance |
5.7 mH |
Rotor Inertia |
20 g-cm² |
Motor weight |
0.18 kg |
Number of leads |
4 |
Connection |
Bipolar |

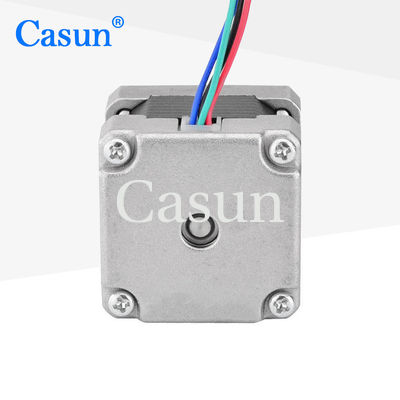

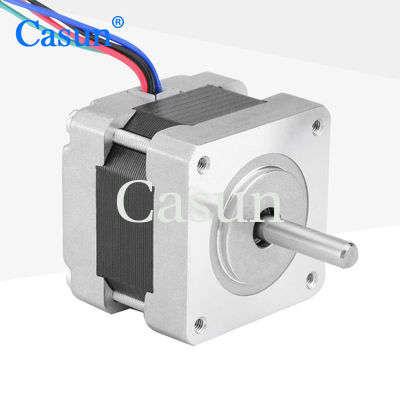

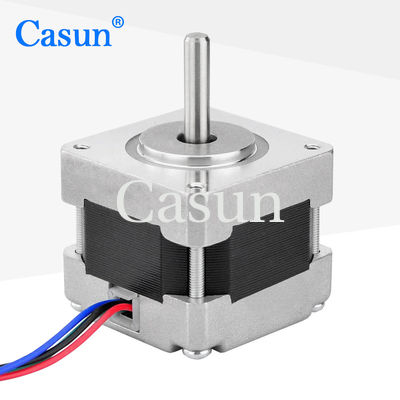

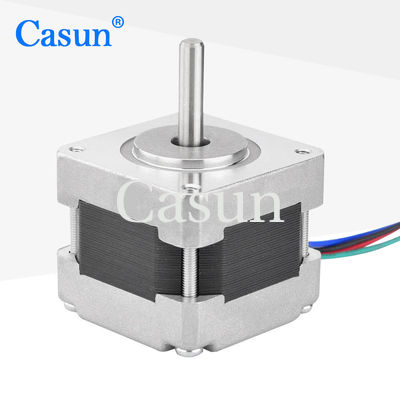

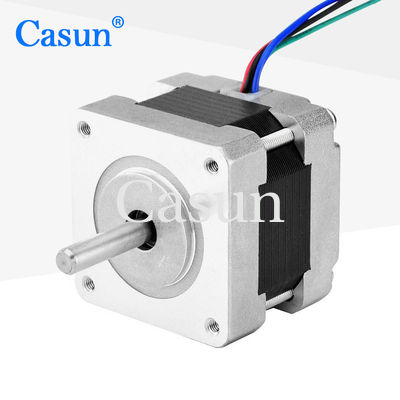

Appearance
Operating Specifications
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Motor Length | Type of Shaft | Rated Current |
| 39SHD0001-20 | 100mN.m | 1.8° | 20mm | Round Shaft 20mm |
0.48A |
| 39SHD0504-20 | 100mN.m | 1.8° | 22mm | Round Shaft 20mm |
0.4A |
| 39SHD0611-20 | 200mN.m | 1.8° | 25mm | Round Shaft 20mm |
0.4A |
| 39SHD0302-20 | 220mN.m | 1.8° | 34mm | Round Shaft 20mm |
0.4A |
| 39SHD0401-24 | 220mN.m | 1.8° | 38mm | Round Shaft 24mm |
0.4A |
| 39SHD0801-24B | 220mN.m | 1.8° | 48mm | D Shaft 24mm |
0.4A |
Download
Encoder |
Brake |
Gearbox |
Shaft |
|
|
|
|
