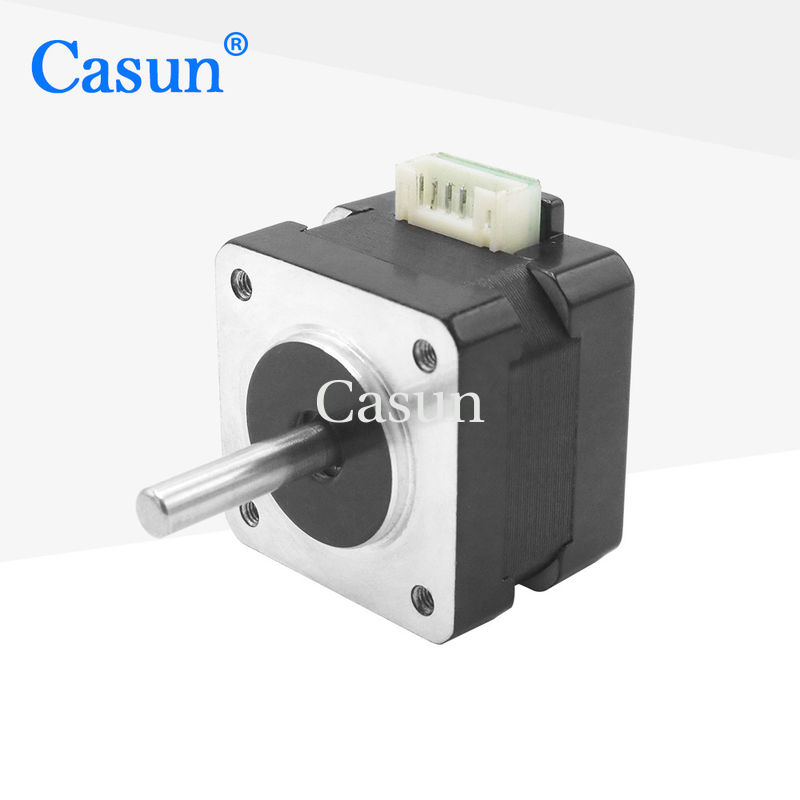

35x35x26mm 2 Phase Hybrid Stepper Motor 12V For Surveillance Camera

35x35x26mm 2 Phase Hybrid Stepper Motor 12V For Surveillance Camera

Tên thương hiệu:	Casun
Số mô hình:	35SHD0003-23H
MOQ:	1 cái
Giá:	$4.14-$6.98
Điều khoản thanh toán:	D/A, T/T, L/C, D/P
Khả năng cung cấp:	40000+Chiếc+Tháng

Thông tin chi tiết

Mô tả sản phẩm

Thông tin chi tiết

Nguồn gốc:

Trung Quốc

Chứng nhận:

CE,ROHS,ISO

bước thiên thần:

1,8°

Giữ mô-men xoắn:

110mN.m

Hiện hành:

0,4a

chiều dài động cơ:

26mm

Trục:

Trục tròn dài 23mm

tùy chỉnh:

Động cơ có thể được thiết kế và sản xuất theo yêu cầu tùy chỉnh.

chi tiết đóng gói:

Thùng: 36x29x14cm

Làm nổi bật:

26mm 2 Phase Hybrid Stepper Motor

35x35 Hybrid Stepper Motor

Casun Hybrid Stepper Motor 12V

Mô tả sản phẩm

NEMA 14 stepper motors typically have higher resolution and accuracy, enabling more precise position control.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
We accept contract manufacturing and provide bespoke services
Offered in single- and double-shaft configurations
CE and RoHS approved
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	110 mN.m
Resistance	30 ohm
Inductance	24 mH
Rotor Inertia	12 g-cm²
Motor weight	0.15 kg
Number of leads	4
Connection	Bipolar

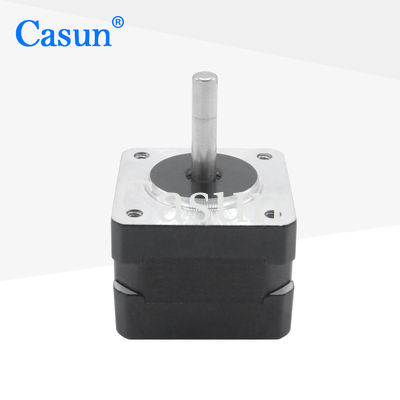

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
