| Tên thương hiệu: | Casun |
| Số mô hình: | 42SHD0034-81NP |
| MOQ: | 1 cái |
| Giá: | $9.68-$14 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

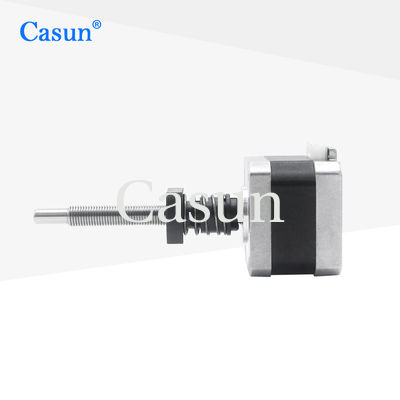

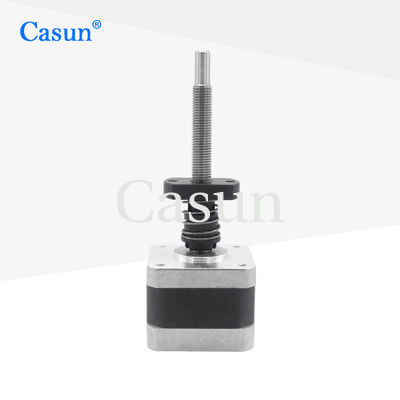

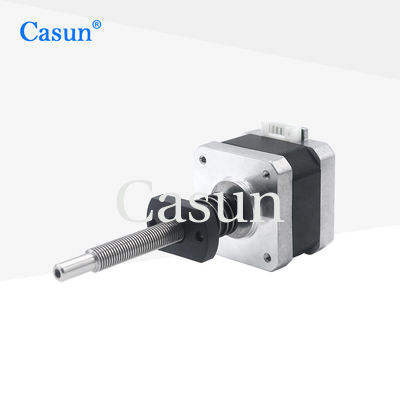

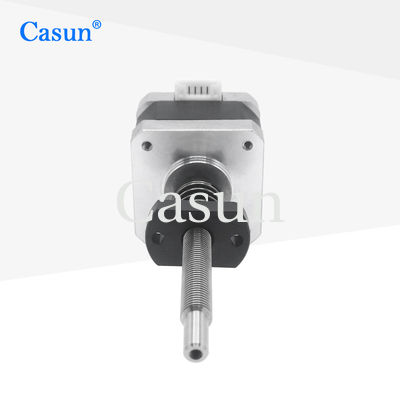

The screw drive structure of the 42mm external drive screw motor can generate greater torque, suitable for applications that require high torque and stability.
The screw drive structure can reduce the reverse rotation of the motor when it stops, which can improve control accuracy and reliability.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
42 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
1.28A |
|
Holding Torque
|
300 mN.m |
|
Resistance
|
5.0 hm |
|
Inductance
|
6.2 mH |
|
Rotor Inertia
|
38 g-cm² |
|
Motor weight
|
0.22 kg |
|
Lead Screw
|
Tr8X1 |
|
Connection
|
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Shaft Radial Play:0.02Max. (450g-load)
Shaft Axial Play:0.08Max. (450g-load)
Max. radial force:28N (20mm from the flange)
Max. axial force):10N
| Model | Holding Torque | Step Angle | Motor Length | Type of Shaft | Rated Current |
| 42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
| 42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
| 42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
| 42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
| 42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
| Body Length | Diameter of Screw | Pitch | Length of Screw | ||
| 20 mm 34 mm 40 mm 48 mm 60 mm |
5 | 2 | 20-1000 mm | ||
| 8 | |||||
| 6.35 | 1.27 | ||||
| 3.175 | |||||
| 6.35 | |||||
| 6.5 | 3 | ||||
| 6.35 | |||||
| 8 | 1 | ||||
| 2 | |||||
| 4 | |||||
| 8 | |||||
| 12 | |||||
