| Tên thương hiệu: | Casun |
| Số mô hình: | 57SHD4425-46G |
| MOQ: | 1 cái |
| Giá: | $22.49-$27 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

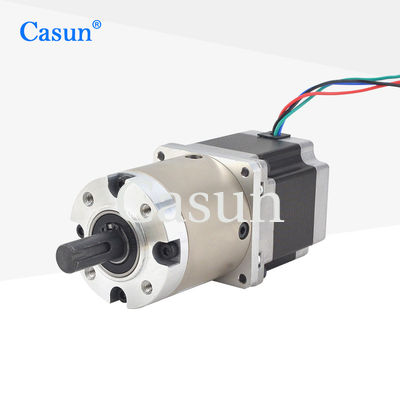

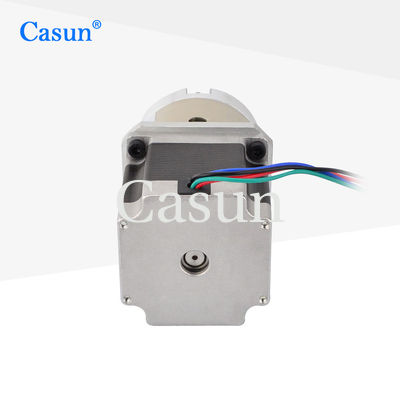

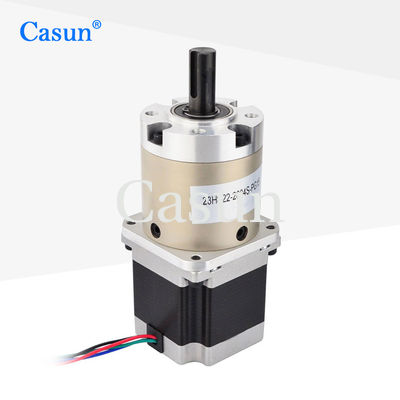

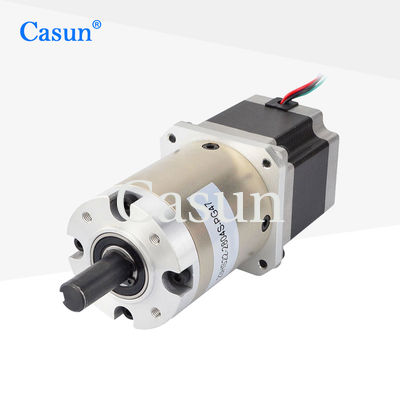

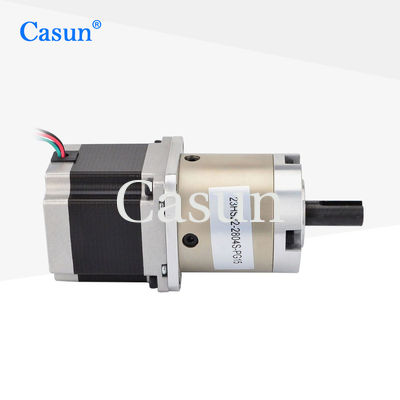

The NEMA 23 reduction motor reduces speed and increases torque through a reduction mechanism, which can output greater torque at low speeds and is suitable for situations where high torque is required.
Widely used in fields such as machine tool equipment, automated production lines, 3D printers, etc.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
57 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
2.8 A |
|
Holding Torque
|
1250mN.m |
|
Resistance
|
0.9 hm |
|
Inductance
|
2.5 mH |
|
Rotor Inertia
|
260 g-cm² |
|
Motor weight
|
1.1 kg |
|
Gear Reduction Ratio
|
46.66:1 |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Gear Box
Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤250N
Max.Shaft Axial Load:≤100N
Radial Play of Shaft (near to Flange):≤0.08m
Axial Play of Shaft:≤0.4mm
Backlash at No-load:≤2.5°
| Motor Length | Length of Gearbox | Raio | Efficiency | ||
| 41 mm 54 mm 76 mm 83 mm 100 mm |
48 mm | 3.6 | 90% | ||
| 4.25 | |||||
| 60 mm | 12.96 | 80% | |||
| 15.3 | |||||
| 18.1 | |||||
| 72 mm | 46.66 | 70% | |||
| 55.08 | |||||
| 65.025 | |||||
| 76.77 | |||||
