| Tên thương hiệu: | Casun |
| Số mô hình: | 60SHD4704-21B |
| MOQ: | 1 cái |
| Giá: | $14-$22 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

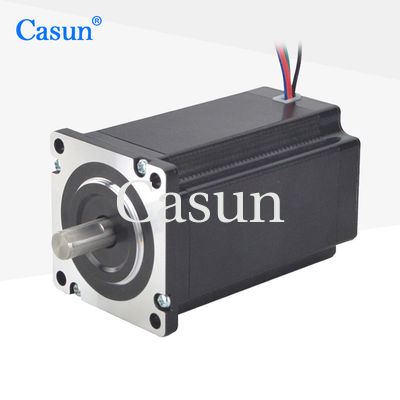

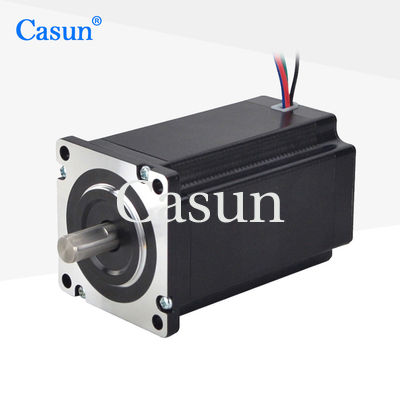

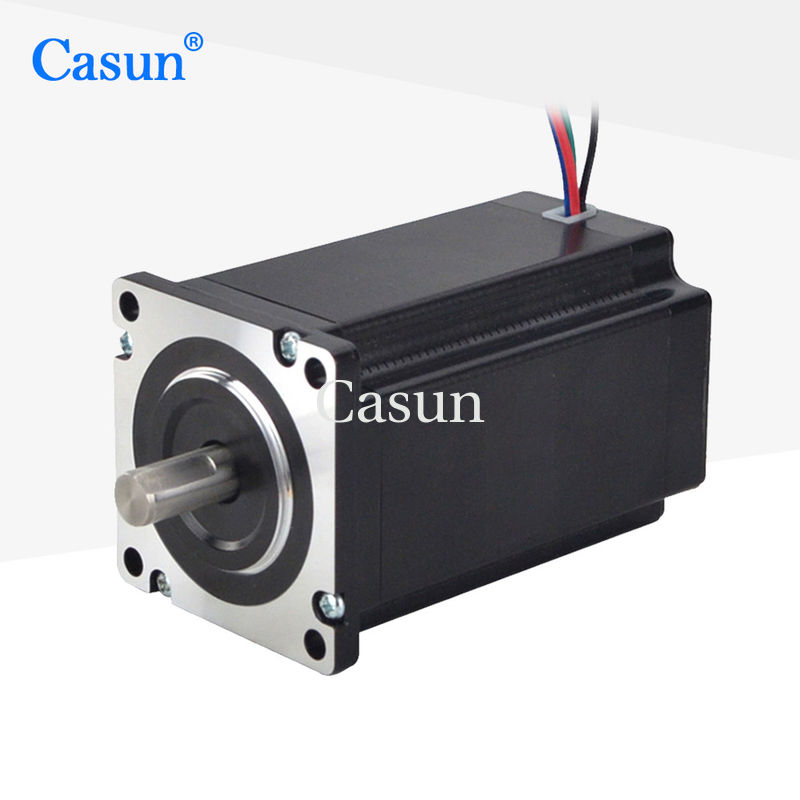

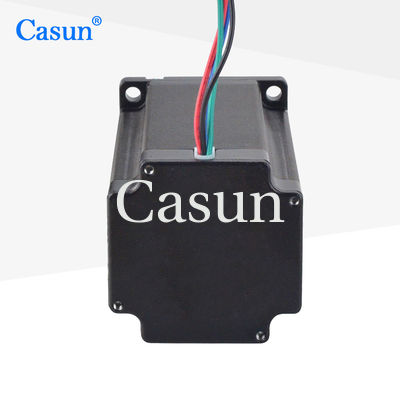

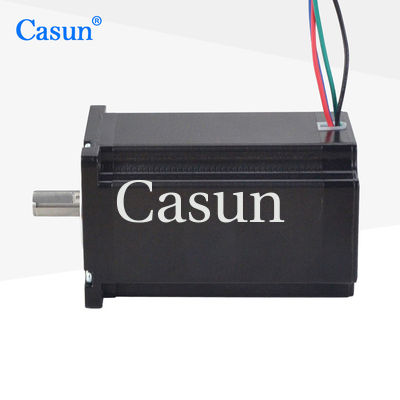

The 60mm stepper motor has a large volume and can withstand large loads.
Widely used in fields that require heavy loads and high-precision control, such as CNC machine tools, electronic equipment, etc.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
60 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
4.0 A |
|
Holding Torque
|
4000mN.m |
|
Resistance
|
0.93 hm |
|
Inductance
|
3.5 mH |
|
Rotor Inertia
|
1000 g-cm² |
|
Motor weight
|
1 kg |
|
Number of leads
|
4 |
|
Connection
|
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque |
Rated Current |
Resistance per phase |
Inductance per phase |
Detent torque |
Rotor inertia |
Lead wire |
Motor length |
| mN.m | A | Ω | mH | mN.m | g.cm² | No. | mm | |
| 60SHD4201 | 650 | 0.6 | 15 | 20 | 50 | 280 | 4 | 45 |
| 60SHD4401 | 1500 | 2.8 | 1 | 3.3 | 70 | 450 | 4 | 56 |
| 60SHD4601 | 3200 | 4.2 | 0.75 | 3.7 | 120 | 580 | 4 | 86 |
| 60SHD6602 | 2500 | 3 | 1.55 | 3.7 | 120 | 580 | 4 |
