| Tên thương hiệu: | Casun |
| Số mô hình: | 28SHD4201-C38T |
| MOQ: | 1 cái |
| Giá: | $26-$31 |
| Điều khoản thanh toán: | D/A, T/T, L/C, D/P |
| Khả năng cung cấp: | 40000+Chiếc+Tháng |

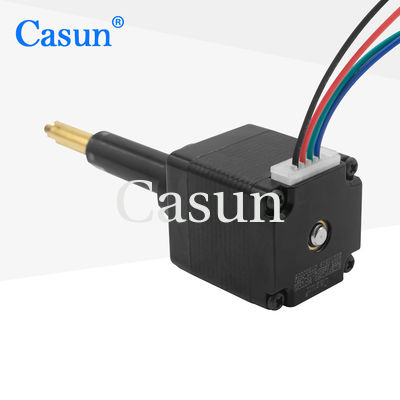

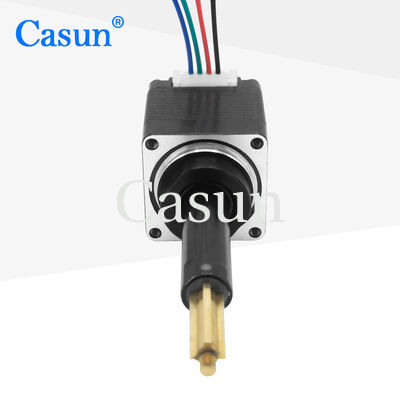

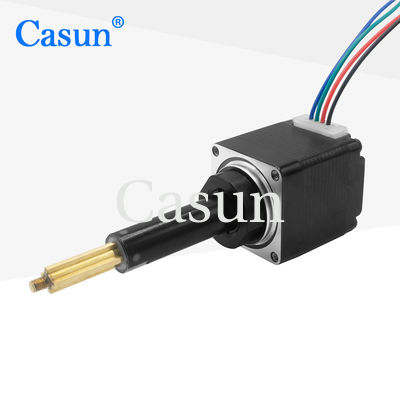

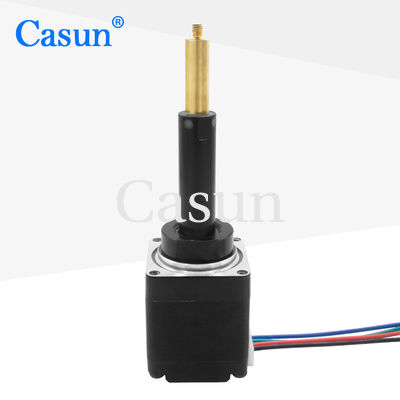

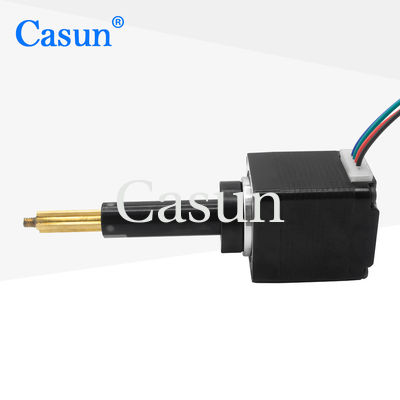

Captive Stepper Motor 0.01mm/Step 0.42A NEMA 11 For Medical Equipment
The NEMA 11 linear pushrod stepper motor achieves linear displacement through the pushrod transmission mechanism, which can accurately control the position.
It has a smaller overall size and is suitable for applications with limited space.
Features:
Appearance
Step Angel |
1.8 ° |
Fram Size |
28 mm |
Number of Phase |
2 Phase |
Rated Current |
0.42 A |
minimal thrust |
1kg at 300pps |
Resistance |
9.2 ohm |
Inductance |
5.7 mH |
Rotor Inertia |
9 g.cm² |
Motor weight |
0.2 kg |
Number of leads |
4 |
Connection |
Bipolar |
| Body Length | Diameter of Screw | Pitch | Length of Screw | |||
| 27 mm 30 mm 38 mm 42 mm 47 mm |
3.5 | 0.6096 | 20-1000 mm | |||
| 1.2192 | ||||||
| 2.44 | ||||||
| 4 | ||||||
| 4 | 2 | |||||
| 4.76 | 5.08 | |||||
| 5 | 2 | |||||
| 4 | ||||||
| 8 | ||||||
| 5.08 | ||||||
| 5.56 | 4.8768 | |||||
